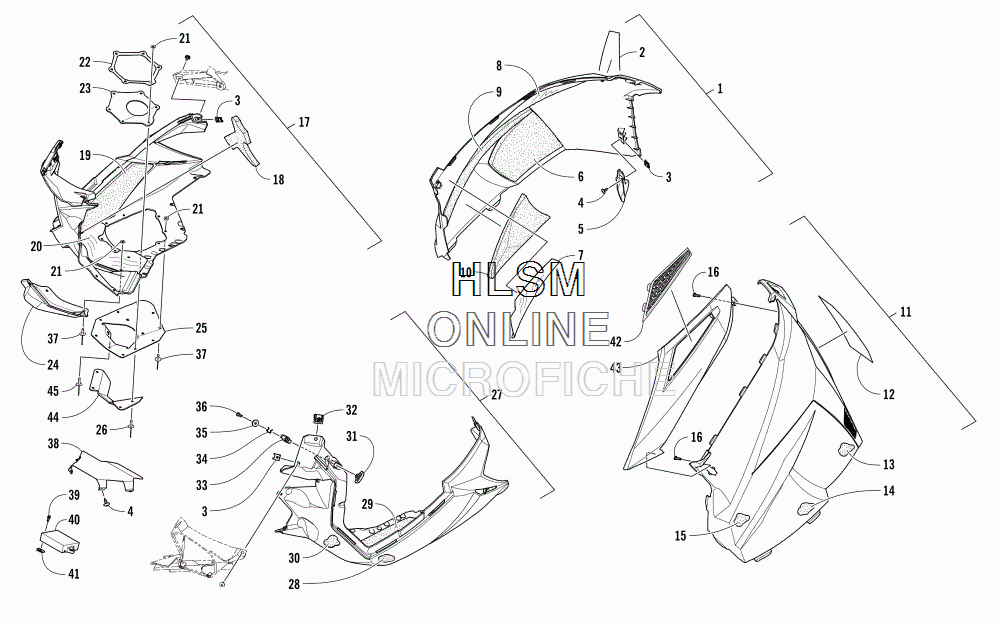

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES 137 GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-682 PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 1
    5718-306 PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 2-10)
    PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 2-10)
  • 2
    3621-487 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 3
    1623-939 ...NUT, U
    ...NUT, U
  • 4
    2623-166 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    7606-292 ...HOOK, MOUNTING - RIGHT
    ...HOOK, MOUNTING - RIGHT
  • 5
    7606-293 ...HOOK, MOUNTING - LEFT
    ...HOOK, MOUNTING - LEFT
  • 6
    0617-756 ...FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ...FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 7
    7606-552 ...FOIL, PROTECTIVE - REAR - RIGHT
    ...FOIL, PROTECTIVE - REAR - RIGHT
  • 8
    7606-598 ...FOIL, PROTECTIVE - UPPER - RIGHT
    ...FOIL, PROTECTIVE - UPPER - RIGHT
  • 9
    0617-758 ...FOAM, SIDE PANEL - MID - RIGHT
    ...FOAM, SIDE PANEL - MID - RIGHT
  • 10
    0617-754 ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 11
    5718-683 PANEL, SIDE W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 11
    5718-031 PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 3-5 AND 12-15)
    PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 3-5 AND 12-15)
  • 12
    3621-486 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 13
    0617-757 ...FOAM, SIDE PANEL - LOWER REAR - LEFT
    ...FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 14
    0617-755 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 15
    0617-759 ...FOAM, SIDE PANEL - MIDDLE - LEFT
    ...FOAM, SIDE PANEL - MIDDLE - LEFT
  • 16
    2623-211 SCREW
    SCREW
  • 17
    5718-304 PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)
    PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)
  • 18
    0617-776 ...FOAM, SKID PLATE - FRONT - RIGHT
    ...FOAM, SKID PLATE - FRONT - RIGHT
  • 19
    0617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT
    ...FOAM, SKID PLATE - MIDDLE - RIGHT
  • 20
    3612-328 ...FOIL, SKID PLATE - RIGHT
    ...FOIL, SKID PLATE - RIGHT
  • 21
    0123-802 ...WASHER
    ...WASHER
  • 22
    3612-232 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 23
    3612-231 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 24
    3612-196 SHIELD, RESONATOR
    SHIELD, RESONATOR
  • 25
    2712-041 DEFLECTOR, EXHAUST OUTLET
    DEFLECTOR, EXHAUST OUTLET
  • 26
    8061-712 RIVET
    RIVET
  • 27
    4718-971 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. TWO NO. 3 AND 28-36)
    PLATE, SKID W/O DECALS - LEFT - BLACK (INC. TWO NO. 3 AND 28-36)
  • 28
    0617-765 ...FOAM, SKID PLATE - LOWER - LEFT
    ...FOAM, SKID PLATE - LOWER - LEFT
  • 29
    0617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT
    ...FOAM, SKID PLATE - MIDDLE - LEFT
  • 30
    0617-761 ...FOAM, SKID PLATE - FRONT - LEFT
    ...FOAM, SKID PLATE - FRONT - LEFT
  • 31
    7606-265 ...KNOB, HOLDDOWN
    ...KNOB, HOLDDOWN
  • 32
    2623-005 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 33
    7606-296 ...PLATE, BACKING
    ...PLATE, BACKING
  • 34
    2623-155 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 35
    2623-171 ...WASHER, FLAT
    ...WASHER, FLAT
  • 36
    1623-933 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 37
    8061-708 RIVET
    RIVET
  • 38
    6606-940 SHIELD, HEAT - ECM
    SHIELD, HEAT - ECM
  • 39
    8408-620 SCREW, CAP
    SCREW, CAP
  • 40
    0730-276 ECM
    ECM
  • 41
    0423-031 NUT, SPEED
    NUT, SPEED
  • 42
    7606-272 VENT, UPPER - SIDE PANEL - RIGHT
    VENT, UPPER - SIDE PANEL - RIGHT
  • 42
    7606-273 VENT, UPPER - SIDE PANEL - LEFT
    VENT, UPPER - SIDE PANEL - LEFT
  • 43
    7606-152 PANEL, UPPER SIDE - RIGHT - BLACK
    PANEL, UPPER SIDE - RIGHT - BLACK
  • 43
    7606-153 PANEL, UPPER SIDE - LEFT - BLACK
    PANEL, UPPER SIDE - LEFT - BLACK
  • 44
    2712-103 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 45
    8061-710 RIVET
    RIVET
