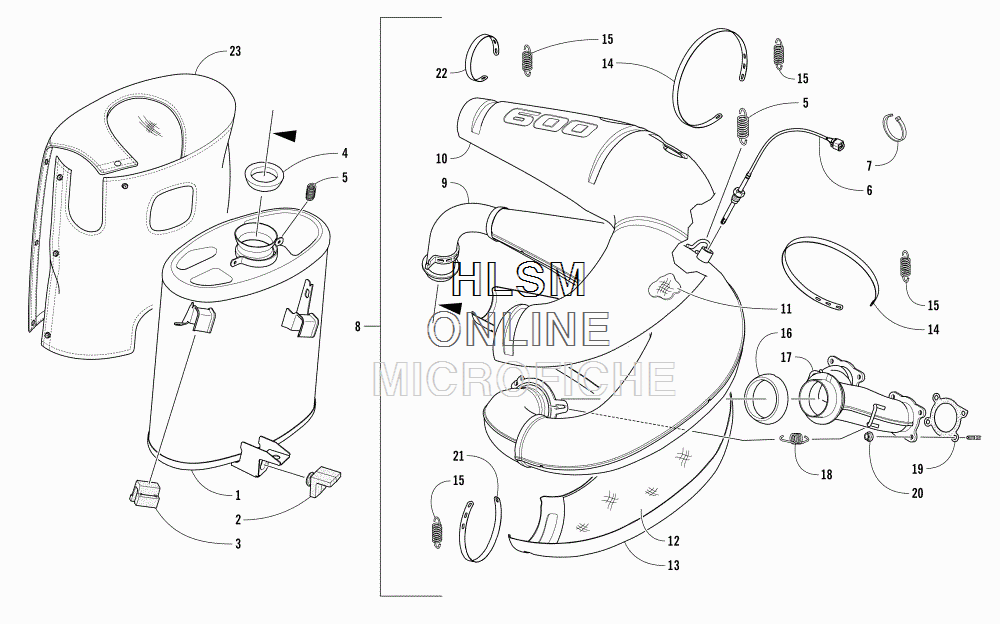

EXHAUST ASSEMBLY для Arctic Cat ZR 6000 LTD ES 137 GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-970 RESONATOR ASSEMBLY
    RESONATOR ASSEMBLY
  • 2
    2612-706 GROMMET - LOWER
    GROMMET - LOWER
  • 3
    2612-893 GROMMET - UPPER
    GROMMET - UPPER
  • 4
    1612-066 GASKET, EXHAUST - TAILPIPE
    GASKET, EXHAUST - TAILPIPE
  • 5
    2612-949 SPRING
    SPRING
  • 6
    0630-330 SENSOR, EXHAUST TEMPERATURE
    SENSOR, EXHAUST TEMPERATURE
  • 7
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 8
    2712-053 CHAMBER, EXPANSION (INC. 9-15 AND 21-22)
    CHAMBER, EXPANSION (INC. 9-15 AND 21-22)
  • 9
    2712-098 ...CHAMBER, EXPANSION
    ...CHAMBER, EXPANSION
  • 10
    3612-264 ...COVER, EXPANSION CHAMBER - UPPER
    ...COVER, EXPANSION CHAMBER - UPPER
  • 11
    3612-266 ...PACKING, EXPANSION CHAMBER - UPPER
    ...PACKING, EXPANSION CHAMBER - UPPER
  • 12
    3612-267 ...PACKING, EXPANSION CHAMBER - LOWER
    ...PACKING, EXPANSION CHAMBER - LOWER
  • 13
    3612-265 ...COVER, EXPANSION CHAMBER - LOWER
    ...COVER, EXPANSION CHAMBER - LOWER
  • 14
    2612-786 ...BAND, TIE
    ...BAND, TIE
  • 15
    1612-178 ...SPRING, EXHAUST
    ...SPRING, EXHAUST
  • 16
    2612-615 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 17
    2712-035 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 18
    3612-096 SPRING, EXHAUST
    SPRING, EXHAUST
  • 19
    0930-023 GASKET, EXHAUST
    GASKET, EXHAUST
  • 20
    8424-604 NUT
    NUT
  • 21
    3612-296 BAND, TIE
    BAND, TIE
  • 22
    2612-784 BAND, TIE
    BAND, TIE
