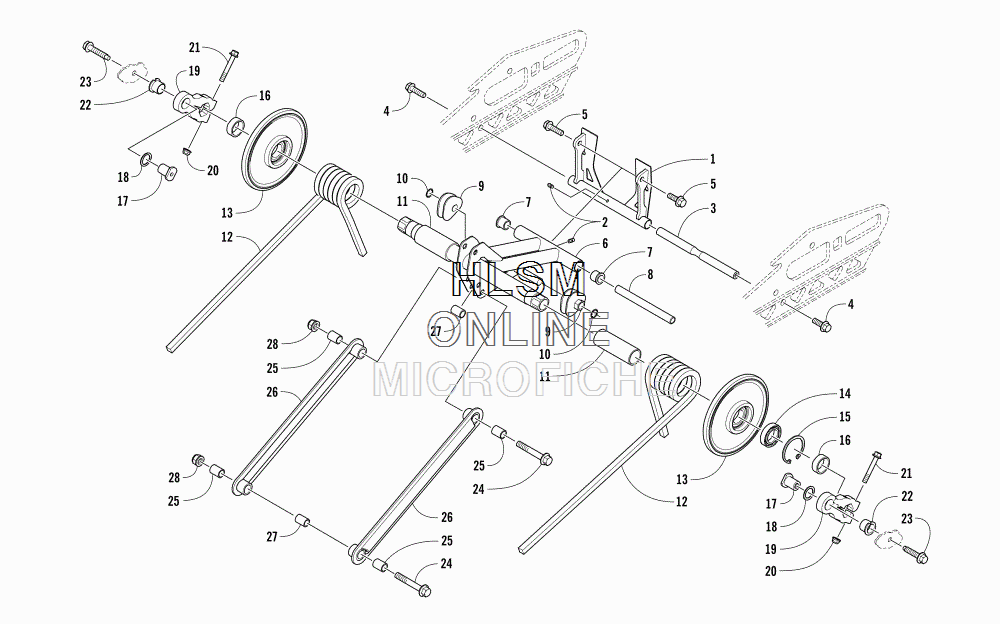

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZR 6000 EL TIGRE ES 137 GREEN - 2018 года выпуска`
-
№АртикулНазвание
-
12704-389 ARM, REAR - BLACK (INC. ONE NO. 2)ARM, REAR - BLACK (INC. ONE NO. 2)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-965 AXLEAXLE
-
48413-031 SCREW, CAPSCREW, CAP
-
58413-041 SCREW, CAPSCREW, CAP
-
62704-002 ARM, IDLER - BLACK (INC. 7 AND ONE NO. 2)ARM, IDLER - BLACK (INC. 7 AND ONE NO. 2)
-
71604-100 ...BUSHING, FLARED...BUSHING, FLARED
-
83604-276 AXLEAXLE
-
91604-204 BLOCK, SPRING ADJUSTER - RIGHT - BLACKBLOCK, SPRING ADJUSTER - RIGHT - BLACK
-
91604-205 BLOCK, SPRING ADJUSTER - LEFT - BLACKBLOCK, SPRING ADJUSTER - LEFT - BLACK
-
100623-138 RING, RETAININGRING, RETAINING
-
113604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
122704-026 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
122704-027 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
133604-901 WHEEL, IDLER (INC. 14-15)WHEEL, IDLER (INC. 14-15)
-
143604-257 ...BEARING...BEARING
-
153604-256 ...RING, RETAINING...RING, RETAINING
-
163604-674 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
173604-979 AXLEAXLE
-
183604-930 WASHERWASHER
-
193704-007 PIVOT - IDLER ARM (INC. 20-22)PIVOT - IDLER ARM (INC. 20-22)
-
208427-802 ...NUT...NUT
-
218408-860 ...SCREW, CAP...SCREW, CAP
-
223604-713 ...BUSHING, FLARED...BUSHING, FLARED
-
232623-002 SCREW, CAPSCREW, CAP
-
248408-090 SCREW, CAPSCREW, CAP
-
253604-330 AXLE, LINKAXLE, LINK
-
260704-928 LINK, SHOCKLINK, SHOCK
-
273604-109 SLEEVESLEEVE
-
282623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
