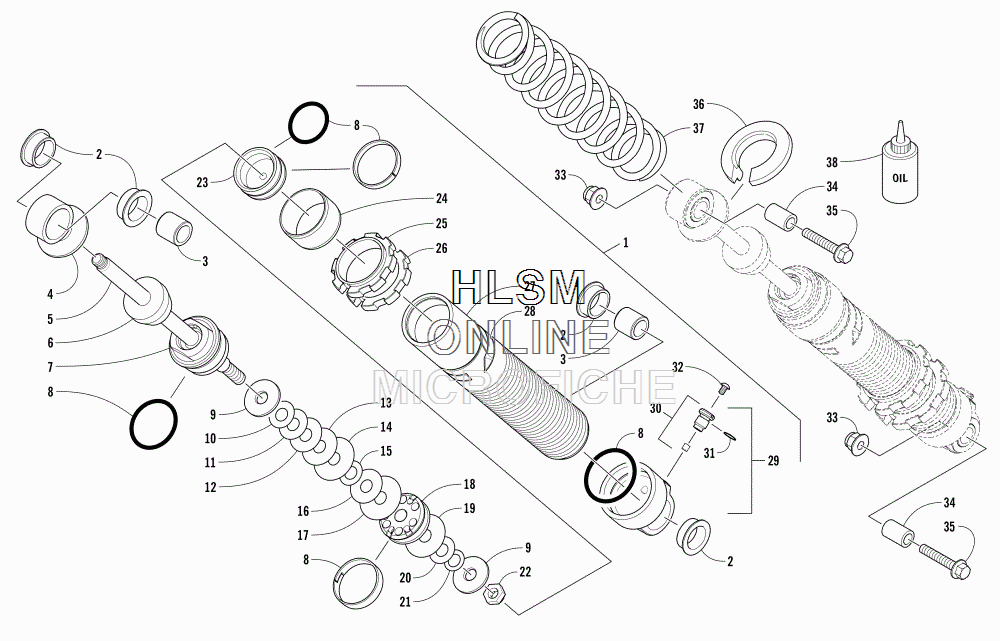

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 6000 CROSSTREK ES 137 GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-469 SHOCK, SKI (INC. 2-32)
    SHOCK, SKI (INC. 2-32)
  • 2
    3604-738 ...BUSHING
    ...BUSHING
  • 3
    3604-737 ...SLEEVE
    ...SLEEVE
  • 4
    2603-020 ...EYELET, SHOCK
    ...EYELET, SHOCK
  • 5
    3604-762 ...ROD, SHOCK
    ...ROD, SHOCK
  • 6
    3604-740 ...BUMPER, SHOCK
    ...BUMPER, SHOCK
  • 7
    4604-126 ...BEARING - ASSEMBLY
    ...BEARING - ASSEMBLY
  • 8
    4604-121 ...KIT, SEAL/REBUILD
    ...KIT, SEAL/REBUILD
  • 9
    3604-789 ...WASHER, TOP OUT
    ...WASHER, TOP OUT
  • 10
    3603-105 ...VALVE, 0.800 X 0.010 IN.
    ...VALVE, 0.800 X 0.010 IN.
  • 11
    3603-115 ...VALVE, 0.900 X 0.010 IN.
    ...VALVE, 0.900 X 0.010 IN.
  • 12
    3603-125 ...VALVE, 1.000 X 0.010 IN.
    ...VALVE, 1.000 X 0.010 IN.
  • 13
    3603-145 ...VALVE, 1.100 X 0.010 IN.
    ...VALVE, 1.100 X 0.010 IN.
  • 14
    3603-175 ...VALVE, 1.250 X 0.010 IN.
    ...VALVE, 1.250 X 0.010 IN.
  • 15
    3603-094 ...VALVE, 0.700 X 0.008 IN.
    ...VALVE, 0.700 X 0.008 IN.
  • 16
    3603-124 ...VALVE, 1.000 X 0.008 IN.
    ...VALVE, 1.000 X 0.008 IN.
  • 17
    3603-182 ...VALVE, 1.300 X 0.006 IN.
    ...VALVE, 1.300 X 0.006 IN.
  • 18
    3604-790 ...PISTON, 37 BORE-2.35 ORIFICE
    ...PISTON, 37 BORE-2.35 ORIFICE
  • 19
    3603-174 ...VALVE, 1.250 X 0.008 IN.
    ...VALVE, 1.250 X 0.008 IN.
  • 20
    3603-106 ...VALVE, 0.800 X 0.012 IN.
    ...VALVE, 0.800 X 0.012 IN.
  • 21
    2603-015 ...VALVE, 0.550 X 0.020 IN.
    ...VALVE, 0.550 X 0.020 IN.
  • 22
    3604-739 ...NUT
    ...NUT
  • 23
    3604-772 ...PISTON, FLOATING
    ...PISTON, FLOATING
  • 24
    3604-773 ...SLEEVE, WEAR
    ...SLEEVE, WEAR
  • 25
    2603-014 ...NUT, ADJUSTER
    ...NUT, ADJUSTER
  • 26
    3604-779 ...COLLAR, LOCKING - ADJUSTER NUT
    ...COLLAR, LOCKING - ADJUSTER NUT
  • 27
    3604-757 ...BODY, SHOCK
    ...BODY, SHOCK
  • 28
    1621-728 ...DECAL, WARNING - HIGH PRESSURE
    ...DECAL, WARNING - HIGH PRESSURE
  • 29
    2704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 30-31)
    ...END CAP, SHOCK - ASSEMBLY (INC. 30-31)
  • 30
    3604-751 ......VALVE, PRESSURE (INC. 31)
    ......VALVE, PRESSURE (INC. 31)
  • 31
    3604-733 .........O-RING, VALVE
    .........O-RING, VALVE
  • 32
    3604-750 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 33
    8427-002 NUT, LOCK
    NUT, LOCK
  • 34
    3604-109 SLEEVE
    SLEEVE
  • 35
    8408-050 SCREW, CAP
    SCREW, CAP
  • 36
    3604-200 RETAINER, SPRING
    RETAINER, SPRING
  • 37
    2703-860 SPRING, COMPRESSION - BLACK
    SPRING, COMPRESSION - BLACK
  • 38
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
