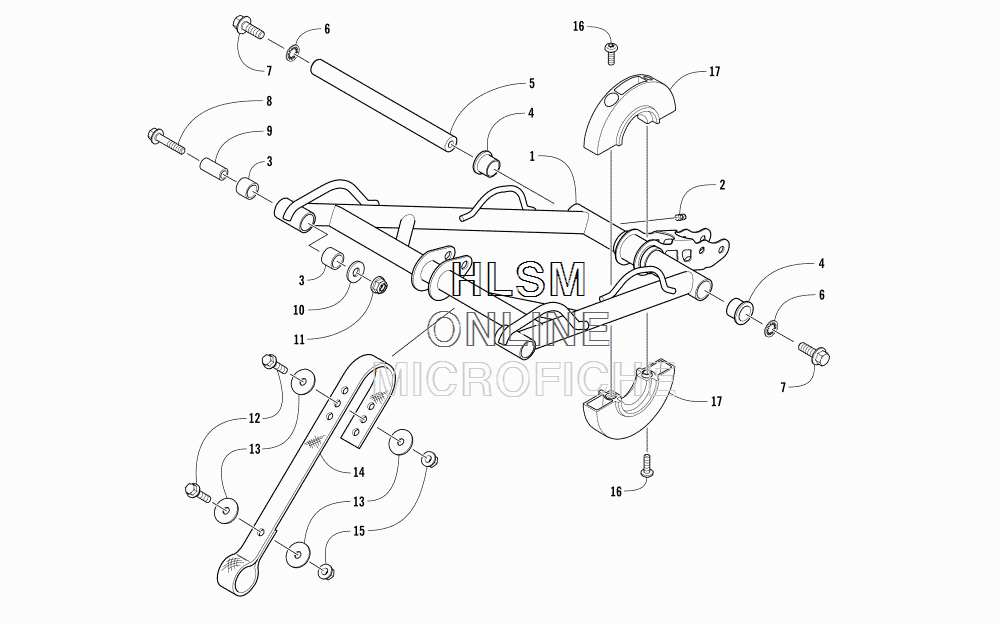

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 GREEN INTERNATIONAL - 2018 года выпуска`
-
№АртикулНазвание
-
12704-418 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30604-889 ...BUSHING...BUSHING
-
43604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
53604-853 AXLEAXLE
-
61623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
78413-031 SCREW, CAPSCREW, CAP
-
88408-065 SCREW, CAPSCREW, CAP
-
93604-665 AXLEAXLE
-
108450-163 WASHERWASHER
-
118427-002 NUT, LOCKNUT, LOCK
-
128408-630 SCREW, CAPSCREW, CAP
-
138450-109 WASHERWASHER
-
143604-391 STRAP, LIMITERSTRAP, LIMITER
-
158427-602 NUT, LOCKNUT, LOCK
-
161623-251 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
174604-201 WHEEL, TRACK GUIDEWHEEL, TRACK GUIDE
