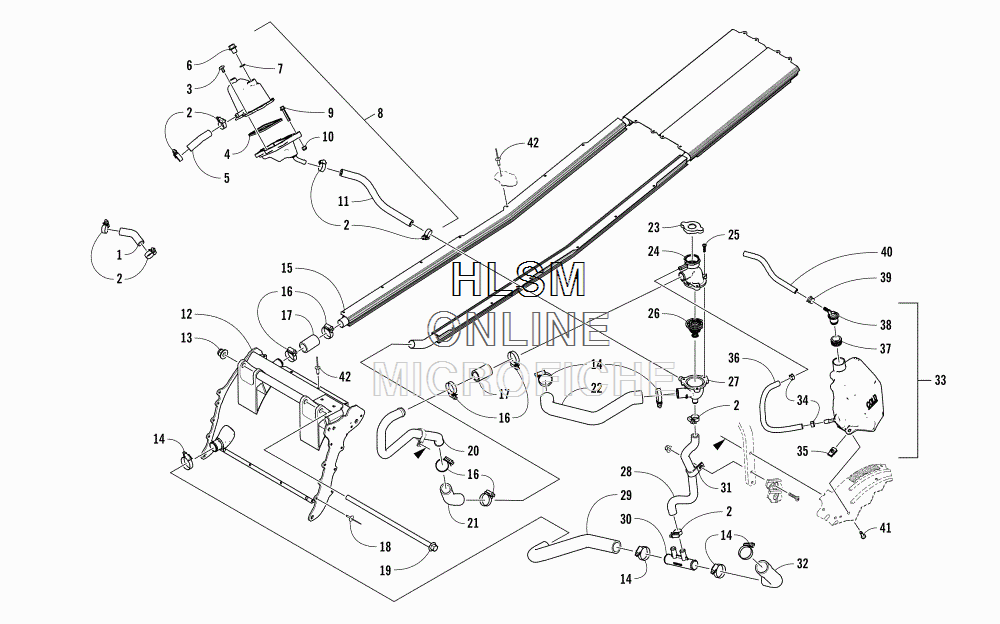

COOLING ASSEMBLY для Arctic Cat XF 9000 CROSSTREK 137 GREEN - 2018 года выпуска`
-
№АртикулНазвание
-
10613-140 HOSE, COOLANTHOSE, COOLANT
-
22623-062 CLAMP, HOSECLAMP, HOSE
-
30826-029 SCREW, MACHINESCREW, MACHINE
-
40613-266 SEALSEAL
-
50613-211 HOSE, COOLANT - VAPOR/OVERFLOWHOSE, COOLANT - VAPOR/OVERFLOW
-
62602-099 PLUGPLUG
-
71602-213 O-RINGO-RING
-
80713-231 TANK, COOLANT - VAPOR - ASSEMBLY (INC. 2-7 AND 11)TANK, COOLANT - VAPOR - ASSEMBLY (INC. 2-7 AND 11)
-
98408-635 SCREW, MACHINESCREW, MACHINE
-
108427-602 NUT, LOCKNUT, LOCK
-
111610-033 HOSE, COOLANTHOSE, COOLANT
-
120713-170 EXCHANGER, HEATEXCHANGER, HEAT
-
138427-202 NUT, LOCKNUT, LOCK
-
142623-088 CLAMP, HOSECLAMP, HOSE
-
150713-166 EXCHANGER, HEAT - REAREXCHANGER, HEAT - REAR
-
162623-038 CLAMP, HOSECLAMP, HOSE
-
170613-214 HOSE, COOLANTHOSE, COOLANT
-
188060-708 RIVET - BLACKRIVET - BLACK
-
192623-126 SCREW, CAPSCREW, CAP
-
200713-173 TUBE, COOLANT - THERMOSTAT/EXCHANGERTUBE, COOLANT - THERMOSTAT/EXCHANGER
-
210613-220 HOSE, COOLANT - THERMOSTAT/EXCHANGERHOSE, COOLANT - THERMOSTAT/EXCHANGER
-
220613-217 HOSE, COOLANTHOSE, COOLANT
-
232606-284 CAPCAP
-
240613-215 NECK, FILLERNECK, FILLER
-
258470-520 SCREW, MACHINESCREW, MACHINE
-
260613-078 THERMOSTATTHERMOSTAT
-
270713-176 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
280613-208 HOSE, COOLANT BYPASSHOSE, COOLANT BYPASS
-
290613-206 HOSE, COOLANT - EXCHANGERHOSE, COOLANT - EXCHANGER
-
300613-089 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
310423-833 CLAMP, TUBECLAMP, TUBE
-
320613-207 HOSE, COOLANT, ENGINEHOSE, COOLANT, ENGINE
-
330713-174 TANK, ASSEMBLY (INC. 34-38)TANK, ASSEMBLY (INC. 34-38)
-
340610-415 ...CLAMP, HOSE...CLAMP, HOSE
-
350423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
360610-970 ...HOSE - 25 FT...HOSE - 25 FT
-
370613-167 ...STOPPER...STOPPER
-
381670-787 ...VALVE, CHECK...VALVE, CHECK
-
391623-042 CLAMP, 10MMCLAMP, 10MM
-
406101-009 HOSE - 50 FTHOSE - 50 FT
-
412623-059 SCREW, MACHINESCREW, MACHINE
-
428060-706 RIVET - BLACKRIVET - BLACK
