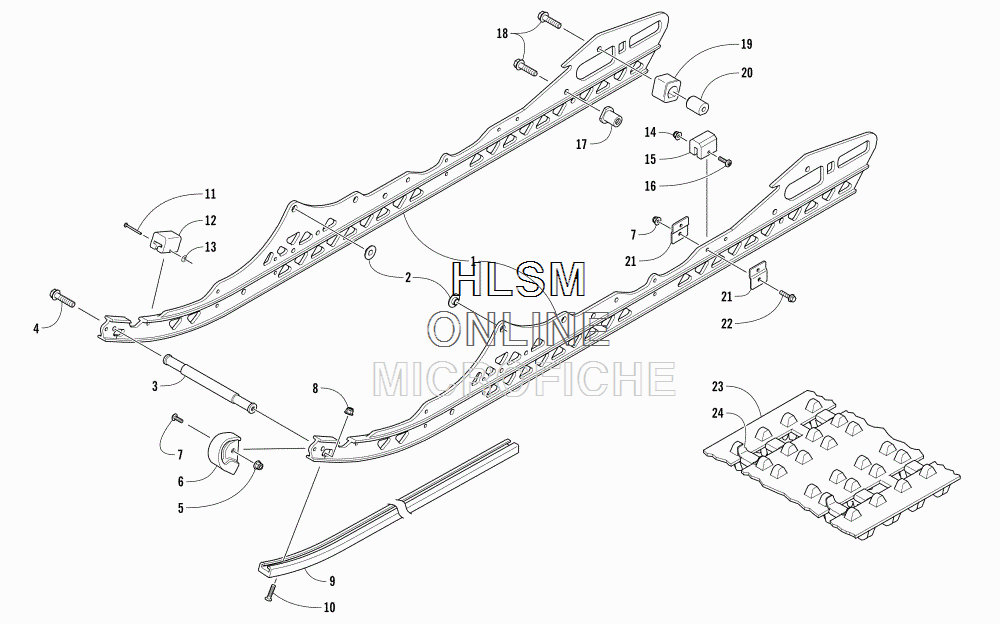

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat XF 9000 CROSSTOUR 146 ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
-3704-194 COMPLETE SKID FRAME ASSEMBLY - ORANGECOMPLETE SKID FRAME ASSEMBLY - ORANGE
-
13704-193 RAIL, FORMED - ORANGERAIL, FORMED - ORANGE
-
23604-266 INSERT, RAILINSERT, RAIL
-
33604-679 AXLEAXLE
-
48408-826 SCREW, CAPSCREW, CAP
-
58427-602 NUT, LOCKNUT, LOCK
-
64604-093 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78476-630 SCREW, MACHINESCREW, MACHINE
-
88047-366 NUT, LOCKNUT, LOCK
-
92604-799 WEARSTRIP, SLIDE RAIL - 162" - BLACKWEARSTRIP, SLIDE RAIL - 162" - BLACK
-
100123-859 SCREW, MACHINESCREW, MACHINE
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
148427-502 NUT, LOCKNUT, LOCK
-
151604-429 PAD, SHOCKPAD, SHOCK
-
168470-540 SCREW, MACHINESCREW, MACHINE
-
173604-979 AXLEAXLE
-
188413-031 SCREW, CAPSCREW, CAP
-
192604-545 BLOCK, COUPLERBLOCK, COUPLER
-
203604-291 BUSHING, COUPLERBUSHING, COUPLER
-
214604-291 BRACKET, MOUNTING - SUSPENSION - BLACKBRACKET, MOUNTING - SUSPENSION - BLACK
-
228408-625 SCREW, CAPSCREW, CAP
-
232602-993 TRACK ASSEMBLY (INC. 24)TRACK ASSEMBLY (INC. 24)
-
242602-386 ...CLIP, GUIDE...CLIP, GUIDE
