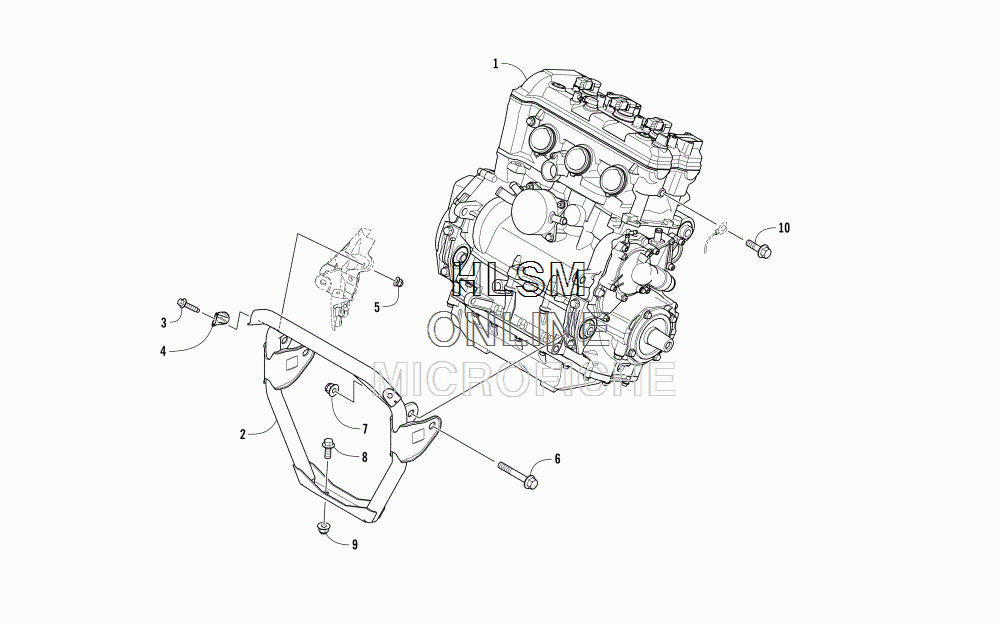

ENGINE AND RELATED PARTS для Arctic Cat XF 9000 CROSS COUNTRY LTD 137 GREEN - 2018 года выпуска`
-
№АртикулНазвание
-
10662-615 ENGINE, 998TENGINE, 998T
-
20708-644 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUTNUT
-
68415-275 SCREW, CAPSCREW, CAP
-
78427-202 NUT, LOCKNUT, LOCK
-
88408-025 SCREW, CAPSCREW, CAP
-
98427-002 NUT, LOCKNUT, LOCK
-
100923-018 SCREW, CAPSCREW, CAP
