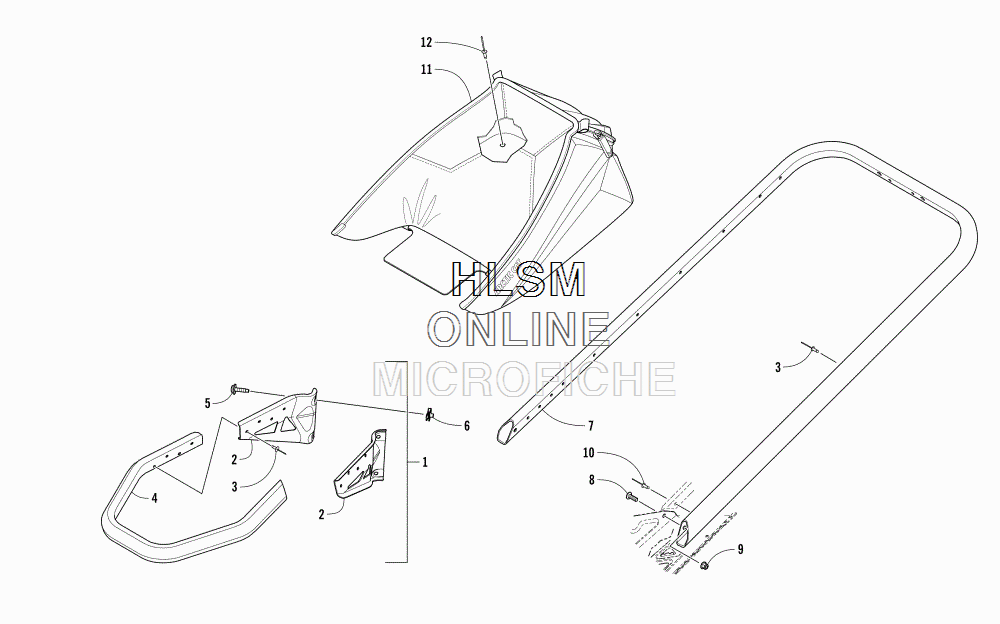

BUMPERS AND STORAGE для Arctic Cat XF 8000 CROSSTREK ES 137 GREEN - 2018 года выпуска`
-
№АртикулНазвание
-
11707-974 BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)
-
21707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
21707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
38060-706 ...RIVET - BLACK...RIVET - BLACK
-
41707-973 ...BUMPER, FRONT - GREEN...BUMPER, FRONT - GREEN
-
50423-609 ...SCREW, MACHINE...SCREW, MACHINE
-
60423-577 CLIP, U-NUTCLIP, U-NUT
-
72707-648 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
88476-620 SCREW, MACHINESCREW, MACHINE
-
98427-602 NUT, LOCKNUT, LOCK
-
101623-241 RIVETRIVET
-
117639-284 SADDLEBAG, REARSADDLEBAG, REAR
-
128061-628 RIVETRIVET
