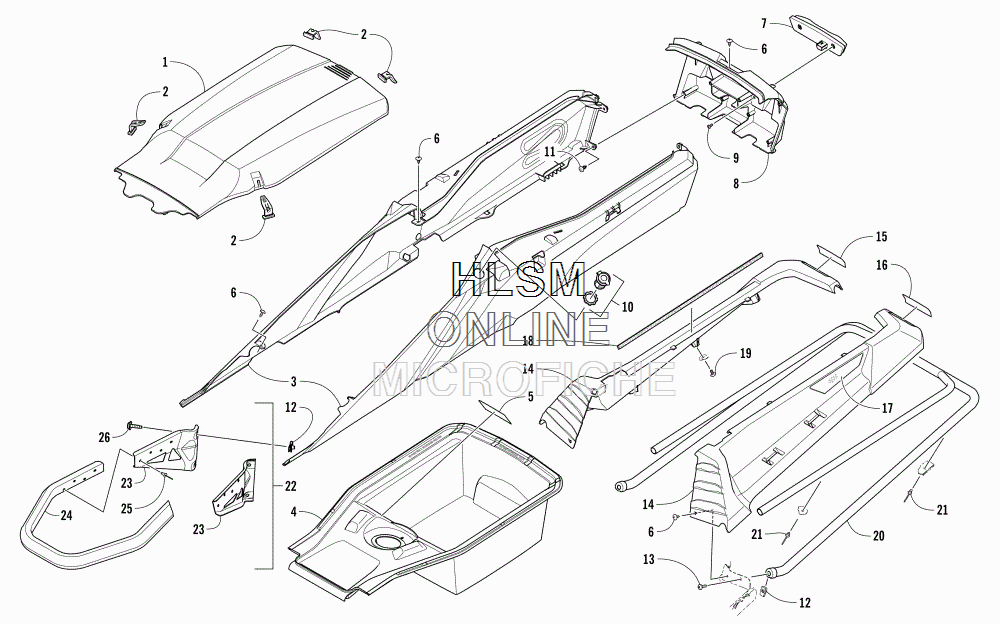

BUMPER- STORAGE- AND TAILLIGHT ASSEMBLY для Arctic Cat XF 7000 CROSSTOUR ORANGE - 2018 года выпуска`
-
№АртикулНазвание
-
16606-697 LID, STORAGE BOXLID, STORAGE BOX
-
24606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
36606-684 FASCIA, FRONT RACK - RIGHT - BLACKFASCIA, FRONT RACK - RIGHT - BLACK
-
36606-685 FASCIA, FRONT RACK - LEFT - BLACKFASCIA, FRONT RACK - LEFT - BLACK
-
47606-263 STORAGE TRAYSTORAGE TRAY
-
52621-316 DECAL, CAPACITY - STORAGE BOXDECAL, CAPACITY - STORAGE BOX
-
62623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
84718-981 FASCIA, REAR RACK - ASSEMBLY (SEE DECALS PAGE FOR DECALS)FASCIA, REAR RACK - ASSEMBLY (SEE DECALS PAGE FOR DECALS)
-
87606-318 FASCIA, REAR RACKFASCIA, REAR RACK
-
98475-512 SCREW, MACHINESCREW, MACHINE
-
100641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
112623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120423-577 CLIP, U-NUTCLIP, U-NUT
-
138477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
144718-346 PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 15 AND 17)PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 15 AND 17)
-
144718-347 PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 16-17)PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 16-17)
-
155611-852 ...DECAL, WARNING - TOWING (FRENCH)...DECAL, WARNING - TOWING (FRENCH)
-
165611-853 ...DECAL, WARNING - TOWING (ENGLISH)...DECAL, WARNING - TOWING (ENGLISH)
-
171621-394 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
171621-395 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
180617-742 SEAL, BUMPER PANELSEAL, BUMPER PANEL
-
191623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201707-628 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
218060-686 RIVETRIVET
-
221707-598 BUMPER, FRONT - ASSEMBLY - ORANGE (INC. 23-25)BUMPER, FRONT - ASSEMBLY - ORANGE (INC. 23-25)
-
231707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
231707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
241707-520 ...FRONT, BUMPER - ORANGE...FRONT, BUMPER - ORANGE
-
258060-706 ...RIVET...RIVET
-
260423-609 SCREW, MACHINESCREW, MACHINE
