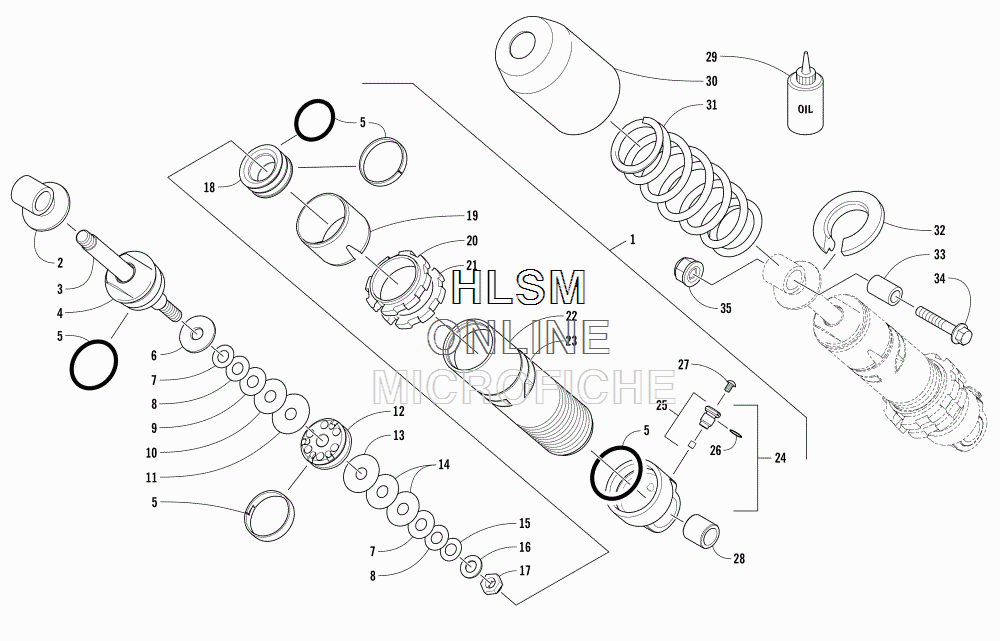

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat PANTERA 7000 LTD BLACK - 2018 года выпуска`
-
№АртикулНазвание
-
12704-691 SHOCK ABSORBER (INC. 2-28)SHOCK ABSORBER (INC. 2-28)
-
23604-797 ...EYELET, SHOCK...EYELET, SHOCK
-
33604-831 ...ROD, SHOCK...ROD, SHOCK
-
44604-125 ...BEARING, ENDCAP - ASSEMBLY...BEARING, ENDCAP - ASSEMBLY
-
54604-121 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
63604-789 ...WASHER, TOP OUT...WASHER, TOP OUT
-
73603-096 ...VALVE, 0.700 X 0.012 IN....VALVE, 0.700 X 0.012 IN.
-
83603-105 ...VALVE, 0.800 X 0.010 IN....VALVE, 0.800 X 0.010 IN.
-
93603-115 ...VALVE, 0.900 X 0.010 IN....VALVE, 0.900 X 0.010 IN.
-
103603-124 ...VALVE, 1.000 X 0.008 IN....VALVE, 1.000 X 0.008 IN.
-
113603-185 ...VALVE, 1.300 X 0.010 IN....VALVE, 1.300 X 0.010 IN.
-
123604-790 ...PISTON, 37 BORE-2.35 ORIFICE...PISTON, 37 BORE-2.35 ORIFICE
-
133603-174 ...VALVE, 1.250 X 0.008 IN....VALVE, 1.250 X 0.008 IN.
-
143603-125 ...VALVE, 1.000 X 0.010 IN....VALVE, 1.000 X 0.010 IN.
-
153603-095 ...VALVE, 0.700 X 0.010 IN....VALVE, 0.700 X 0.010 IN.
-
163604-775 ...WASHER, BACKUP...WASHER, BACKUP
-
173604-739 ...NUT...NUT
-
183604-772 ...PISTON, FLOATING...PISTON, FLOATING
-
193604-773 ...SLEEVE, WEAR...SLEEVE, WEAR
-
202603-014 ...NUT, ADJUSTER...NUT, ADJUSTER
-
213604-779 ...COLLAR, LOCKING - ADJUSTER NUT...COLLAR, LOCKING - ADJUSTER NUT
-
223604-830 ...BODY, SHOCK...BODY, SHOCK
-
231621-728 ...DECAL, WARNING - HIGH PRESSURE...DECAL, WARNING - HIGH PRESSURE
-
242704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 25-26)...END CAP, SHOCK - ASSEMBLY (INC. 25-26)
-
253604-751 ......VALVE, PRESSURE (INC. 26)......VALVE, PRESSURE (INC. 26)
-
263604-733 .........O-RING, VALVE.........O-RING, VALVE
-
273604-750 ...SCREW, MACHINE...SCREW, MACHINE
-
283604-906 ...BEARING...BEARING
-
295639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
300604-790 COVER, SHOCKCOVER, SHOCK
-
311704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
323604-200 RETAINER, SPRINGRETAINER, SPRING
-
333604-273 AXLEAXLE
-
348408-045 SCREW, CAPSCREW, CAP
-
352623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
