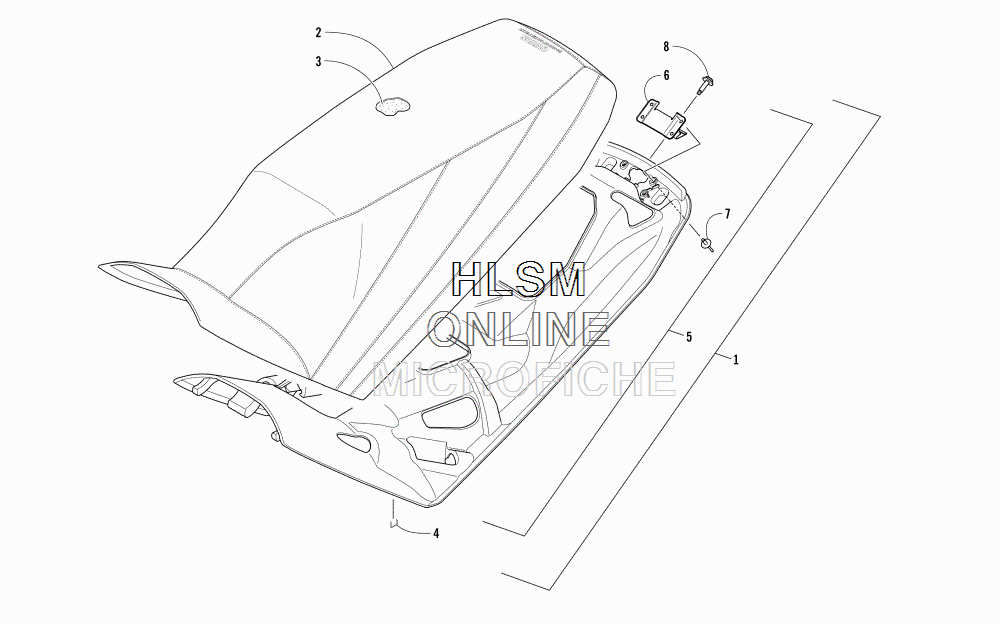

SEAT ASSEMBLY для Arctic Cat M 9000 KING CAT 162 BLACK - 2018 года выпуска`
-
№АртикулНазвание
-
16706-606 COMPLETE SEAT ASSEMBLY (INC. 2-7)COMPLETE SEAT ASSEMBLY (INC. 2-7)
-
26706-605 ...COVER, SEAT...COVER, SEAT
-
30717-216 ...FOAM, SEAT...FOAM, SEAT
-
40624-528 ...STAPLE...STAPLE
-
56706-251 ...SEAT-BASE (INC. 6-7)...SEAT-BASE (INC. 6-7)
-
66606-833 ......LATCH, SEAT......LATCH, SEAT
-
78061-708 ......RIVET......RIVET
-
80423-609 SCREW, MACHINESCREW, MACHINE
