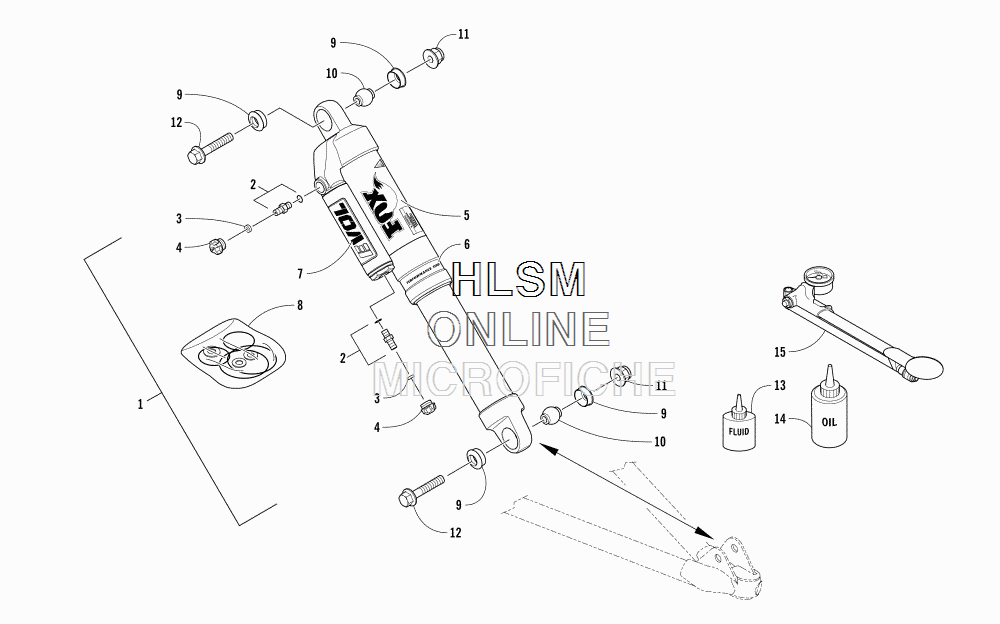

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat M 9000 KING CAT 162 BLACK EARLY BUILD - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-475 SHOCK, SKI (INC. 2-8)
    SHOCK, SKI (INC. 2-8)
  • 2
    2603-511 ...VALVE, AIR
    ...VALVE, AIR
  • 3
    2603-965 ...SEAL
    ...SEAL
  • 4
    3603-367 ...CAP, AIR VALVE
    ...CAP, AIR VALVE
  • 5
    3603-369 ...DECAL, SHOCK
    ...DECAL, SHOCK
  • 6
    3603-365 ...DECAL, "PERFORMANCE SERIES"
    ...DECAL, "PERFORMANCE SERIES"
  • 7
    3603-373 ...DECAL, "EVOL"
    ...DECAL, "EVOL"
  • 8
    3603-525 ...KIT, SEAL/BEARING REBUILD
    ...KIT, SEAL/BEARING REBUILD
  • 9
    3603-260 BUSHING
    BUSHING
  • 10
    3603-261 SLEEVE
    SLEEVE
  • 11
    8437-804 NUT, LOCK
    NUT, LOCK
  • 12
    8413-850 SCREW, CAP
    SCREW, CAP
  • 13
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 14
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
  • 15
    0641-257 PUMP, SHOCK
    PUMP, SHOCK
