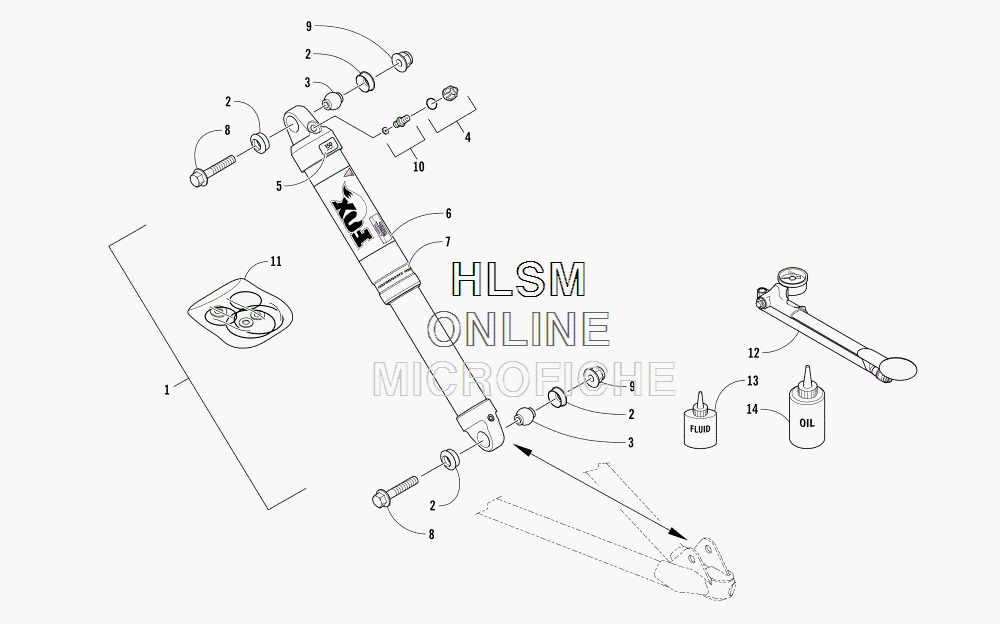

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat M 8000 SNO PRO ES 153 (2.6) ORANGE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-752 SHOCK, SKI (INC. 4-7 AND 10-11)
    SHOCK, SKI (INC. 4-7 AND 10-11)
  • 2
    3603-260 BUSHING
    BUSHING
  • 3
    3603-261 SLEEVE
    SLEEVE
  • 4
    3603-366 CAP, AIR VALVE - W/O-RING
    CAP, AIR VALVE - W/O-RING
  • 5
    3603-359 DECAL, PSI
    DECAL, PSI
  • 6
    3603-369 DECAL, SHOCK
    DECAL, SHOCK
  • 7
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 8
    8413-850 SCREW, CAP
    SCREW, CAP
  • 9
    8437-804 NUT, LOCK
    NUT, LOCK
  • 10
    2603-511 VALVE, AIR
    VALVE, AIR
  • 11
    3603-293 KIT, SEAL/CAP REBUILD
    KIT, SEAL/CAP REBUILD
  • 12
    0641-257 PUMP, SHOCK
    PUMP, SHOCK
  • 13
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 14
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
