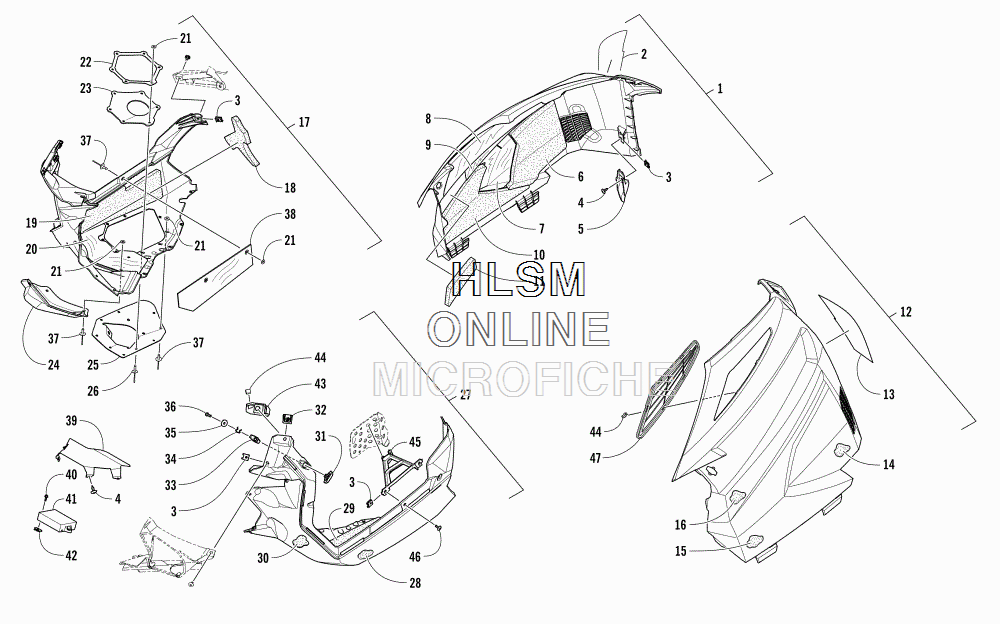

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 SNO PRO 153 ORANGE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-702 PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 1
    5718-600 PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 2-11)
    PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 2-11)
  • 2
    4621-813 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 3
    1623-939 ...NUT, U
    ...NUT, U
  • 4
    2623-166 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    7606-292 ...HOOK, MOUNTING - RIGHT
    ...HOOK, MOUNTING - RIGHT
  • 5
    7606-293 ...HOOK, MOUNTING - LEFT
    ...HOOK, MOUNTING - LEFT
  • 6
    0617-790 ...FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ...FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 7
    7606-644 ...FOIL, PROTECTIVE - LOWER - RIGHT
    ...FOIL, PROTECTIVE - LOWER - RIGHT
  • 8
    7606-646 ...FOIL, PROTECTIVE - UPPER - RIGHT
    ...FOIL, PROTECTIVE - UPPER - RIGHT
  • 9
    7606-650 ...FOIL, PROTECTIVE - MID - RIGHT
    ...FOIL, PROTECTIVE - MID - RIGHT
  • 10
    0617-792 ...FOAM, SIDE PANEL - MID - RIGHT
    ...FOAM, SIDE PANEL - MID - RIGHT
  • 11
    0617-788 ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 12
    5718-703 PANEL, SIDE W/DECALS - LEFT - GRAY (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - LEFT - GRAY (SEE DECALS PAGE FOR DECALS)
  • 12
    5718-601 PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 3-5 AND 13-16)
    PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 3-5 AND 13-16)
  • 13
    4621-812 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 14
    0617-791 ...FOAM, SIDE PANEL - LOWER REAR - LEFT
    ...FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 15
    0617-789 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 16
    0617-793 ...FOAM, SIDE PANEL - MIDDLE - LEFT
    ...FOAM, SIDE PANEL - MIDDLE - LEFT
  • 17
    5718-790 PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)
    PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)
  • 18
    0617-776 ...FOAM, SKID PLATE - FRONT - RIGHT
    ...FOAM, SKID PLATE - FRONT - RIGHT
  • 19
    0617-794 ...FOAM, SKID PLATE - MIDDLE - RIGHT
    ...FOAM, SKID PLATE - MIDDLE - RIGHT
  • 20
    3612-328 ...FOIL, SKID PLATE - RIGHT
    ...FOIL, SKID PLATE - RIGHT
  • 21
    0123-802 ...WASHER
    ...WASHER
  • 22
    3612-232 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 23
    3612-231 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 24
    3612-196 SHIELD, RESONATOR
    SHIELD, RESONATOR
  • 25
    2712-041 DEFLECTOR, EXHAUST OUTLET
    DEFLECTOR, EXHAUST OUTLET
  • 26
    8061-710 RIVET
    RIVET
  • 27
    5718-791 PLATE, SKID W/FOAM - LEFT - BLACK (INC. TWO NO. 3 AND 28-36)
    PLATE, SKID W/FOAM - LEFT - BLACK (INC. TWO NO. 3 AND 28-36)
  • 28
    0617-765 ...FOAM, SKID PLATE - LOWER - LEFT
    ...FOAM, SKID PLATE - LOWER - LEFT
  • 29
    0617-795 ...FOAM, SKID PLATE - MIDDLE - LEFT
    ...FOAM, SKID PLATE - MIDDLE - LEFT
  • 30
    0617-761 ...FOAM, SKID PLATE - FRONT - LEFT
    ...FOAM, SKID PLATE - FRONT - LEFT
  • 31
    7606-265 ...KNOB, HOLDDOWN
    ...KNOB, HOLDDOWN
  • 32
    2623-005 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 33
    7606-296 ...PLATE, BACKING
    ...PLATE, BACKING
  • 34
    2623-155 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 35
    2623-171 ...WASHER, FLAT
    ...WASHER, FLAT
  • 36
    2623-211 ...SCREW
    ...SCREW
  • 37
    8061-708 RIVET
    RIVET
  • 38
    2712-099 SHIELD, HEAT BARRIER W/GROMMETS
    SHIELD, HEAT BARRIER W/GROMMETS
  • 39
    6606-940 SHIELD, HEAT - ECM
    SHIELD, HEAT - ECM
  • 40
    8408-620 SCREW, CAP
    SCREW, CAP
  • 41
    0730-297 ECM
    ECM
  • 42
    0423-031 NUT, SPEED
    NUT, SPEED
  • 43
    7606-654 BUMPER, PROTECTOR
    BUMPER, PROTECTOR
  • 44
    0123-987 CLIP, U
    CLIP, U
  • 45
    7606-621 BRACE
    BRACE
  • 46
    2623-164 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 47
    7606-640 VENT, UPPER SIDE PANEL - RIGHT
    VENT, UPPER SIDE PANEL - RIGHT
  • 47
    7606-641 VENT, UPPER SIDE PANEL - LEFT
    VENT, UPPER SIDE PANEL - LEFT
