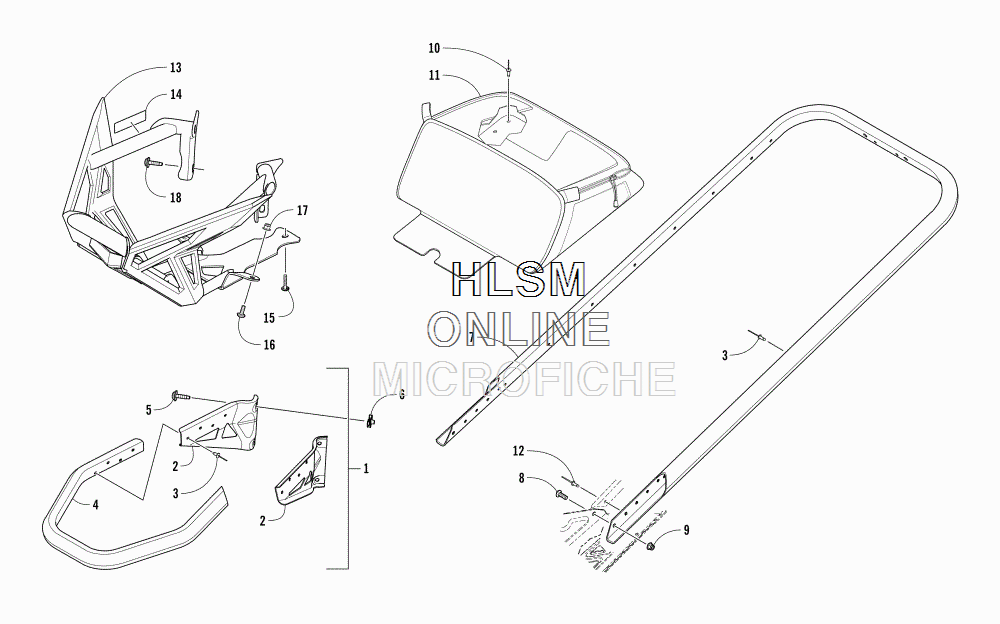

BUMPERS AND STORAGE для Arctic Cat M 8000 MOUNTAIN CAT ES 153 BLACK - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2707-080 BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5) (STANDARD ON MOUNTAIN CAT)
    BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5) (STANDARD ON MOUNTAIN CAT)
  • 2
    1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
    ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
  • 2
    1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
    ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
  • 3
    8060-706 ...RIVET - BLACK
    ...RIVET - BLACK
  • 4
    2707-179 ...BUMPER, FRONT - GREEN
    ...BUMPER, FRONT - GREEN
  • 5
    0423-609 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 7
    2707-590 BUMPER, REAR - BLACK
    BUMPER, REAR - BLACK
  • 8
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    8061-708 RIVET
    RIVET
  • 11
    7606-584 BAG, TUNNEL
    BAG, TUNNEL
  • 12
    1623-206 RIVET
    RIVET
  • 13
    2707-565 BUMPER, FRONT (STANDARD ON HARDCORE)
    BUMPER, FRONT (STANDARD ON HARDCORE)
  • 14
    4621-772 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 15
    2623-165 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    8427-605 NUT
    NUT
  • 18
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
