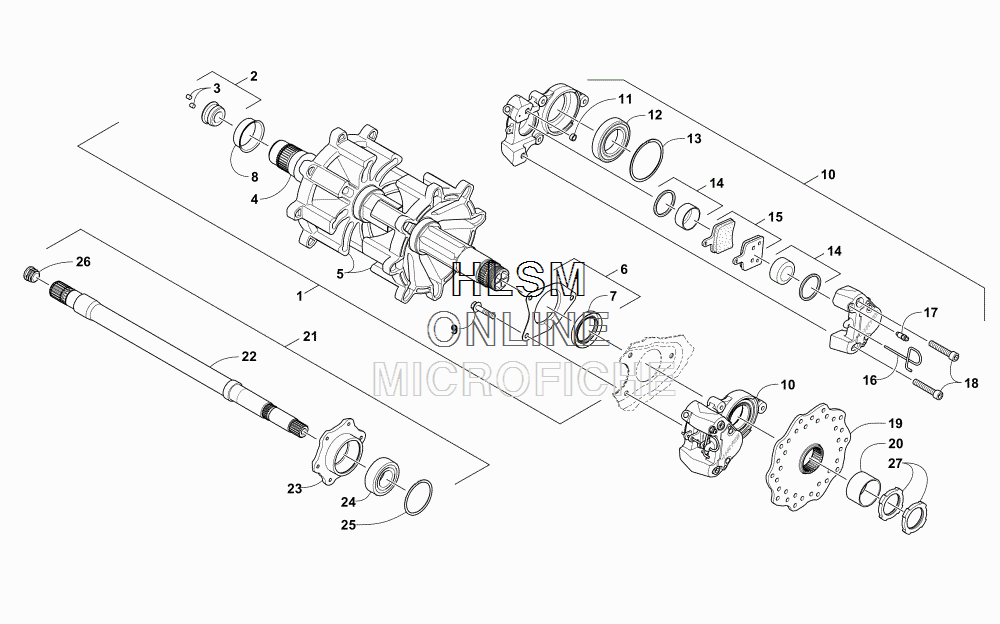

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat M 8000 HARDCORE 153 GREEN INTERNATIONAL - 2018 года выпуска`
-
№АртикулНазвание
-
10728-254 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
21702-072 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
-
32602-211 ......MAGNET......MAGNET
-
43602-147 ...DRIVESHAFT...DRIVESHAFT
-
52602-617 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
61702-503 ...PLATE, RETAINING - SEAL (INC. 7)...PLATE, RETAINING - SEAL (INC. 7)
-
73602-081 ......SEAL......SEAL
-
83602-080 ...SLEEVE...SLEEVE
-
98408-831 SCREW, CAPSCREW, CAP
-
103602-030 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
-
112602-411 ...SEAL...SEAL
-
122602-198 ...BEARING...BEARING
-
132602-280 ...RING, RETAINING...RING, RETAINING
-
142602-410 ...PISTON SET...PISTON SET
-
153602-061 ...PAD, BRAKE - SET (INC. 16)...PAD, BRAKE - SET (INC. 16)
-
163602-060 ......PIN, RETAINING......PIN, RETAINING
-
172602-408 ...FITTING, BLEED...FITTING, BLEED
-
182602-412 ...SCREW, CAP...SCREW, CAP
-
193602-027 DISC, BRAKEDISC, BRAKE
-
203602-052 BUSHINGBUSHING
-
211702-470 SHAFT, DRIVEN - ASSEMBLY (INC. 22-26)SHAFT, DRIVEN - ASSEMBLY (INC. 22-26)
-
222602-995 ...SHAFT, DRIVEN...SHAFT, DRIVEN
-
232602-422 ...HUB, BEARING...HUB, BEARING
-
242602-247 ...BEARING...BEARING
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
260623-831 ...CAP...CAP
-
273602-051 NUTNUT
