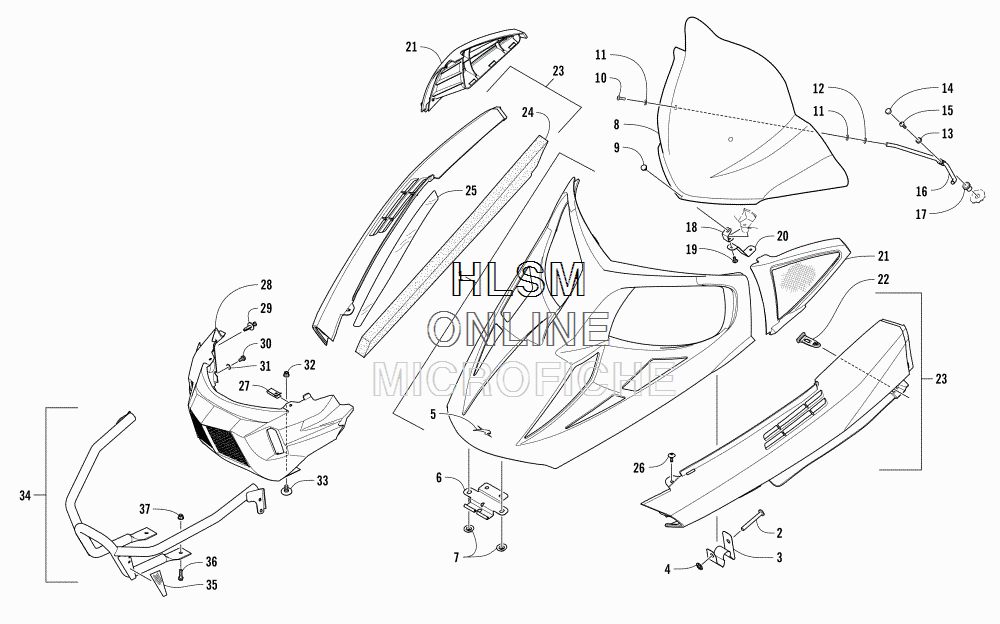

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE INTERNATIONAL - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-819 HOOD W/DECALS - WHITE (SEE DECALS PAGE FOR DECALS)
    HOOD W/DECALS - WHITE (SEE DECALS PAGE FOR DECALS)
  • 1
    7800-956 HOOD W/O DECALS - WHITE (INC. 2-4)
    HOOD W/O DECALS - WHITE (INC. 2-4)
  • 2
    1623-610 ...PIN, RETAINING
    ...PIN, RETAINING
  • 3
    5706-084 ...CLIP, HOOD HOLD-DOWN - RIGHT
    ...CLIP, HOOD HOLD-DOWN - RIGHT
  • 3
    5706-085 ...CLIP, HOOD HOLD-DOWN - LEFT
    ...CLIP, HOOD HOLD-DOWN - LEFT
  • 4
    1623-409 ...RETAINER, PUSHNUT
    ...RETAINER, PUSHNUT
  • 5
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 6
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 7
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 8
    6606-278 WINDSHIELD
    WINDSHIELD
  • 9
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 10
    1623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    1623-837 WASHER, RUBBER
    WASHER, RUBBER
  • 12
    8050-242 WASHER
    WASHER
  • 13
    0124-065 WASHER, SNAP CAP
    WASHER, SNAP CAP
  • 14
    0124-066 COVER, SNAP CAP - BLACK
    COVER, SNAP CAP - BLACK
  • 15
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    5706-073 SUPPORT, WINDSHIELD
    SUPPORT, WINDSHIELD
  • 17
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 18
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 19
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 21
    5606-940 BEZEL, INTAKE - RIGHT - WHITE
    BEZEL, INTAKE - RIGHT - WHITE
  • 21
    5606-941 BEZEL, INTAKE - LEFT - WHITE
    BEZEL, INTAKE - LEFT - WHITE
  • 22
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 23
    5718-056 SPAR, FRONT W/DECALS - RIGHT - BLUE (SEE DECALS PAGE FOR DECALS)
    SPAR, FRONT W/DECALS - RIGHT - BLUE (SEE DECALS PAGE FOR DECALS)
  • 23
    5718-057 SPAR, FRONT W/DECALS - LEFT - BLUE (SEE DECALS PAGE FOR DECALS)
    SPAR, FRONT W/DECALS - LEFT - BLUE (SEE DECALS PAGE FOR DECALS)
  • 23
    3718-886 SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 24)
    SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 24)
  • 23
    3718-887 SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 24)
    SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 24)
  • 24
    0617-656 ...FOAM, FRONT SPAR - RIGHT
    ...FOAM, FRONT SPAR - RIGHT
  • 24
    0617-657 ...FOAM, FRONT SPAR - LEFT
    ...FOAM, FRONT SPAR - LEFT
  • 25
    4606-934 FOIL, SPAR - RIGHT
    FOIL, SPAR - RIGHT
  • 26
    2623-164 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 27
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 28
    5606-725 FASCIA, FRONT - BLUE
    FASCIA, FRONT - BLUE
  • 29
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 30
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 31
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 32
    8427-602 NUT, LOCK
    NUT, LOCK
  • 33
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 34
    4706-961 BUMPER, FRONT - BLACK (INC. 35)
    BUMPER, FRONT - BLACK (INC. 35)
  • 35
    9611-386 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 35
    9611-387 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 36
    8408-025 SCREW, CAP
    SCREW, CAP
  • 37
    8427-002 NUT, LOCK
    NUT, LOCK
