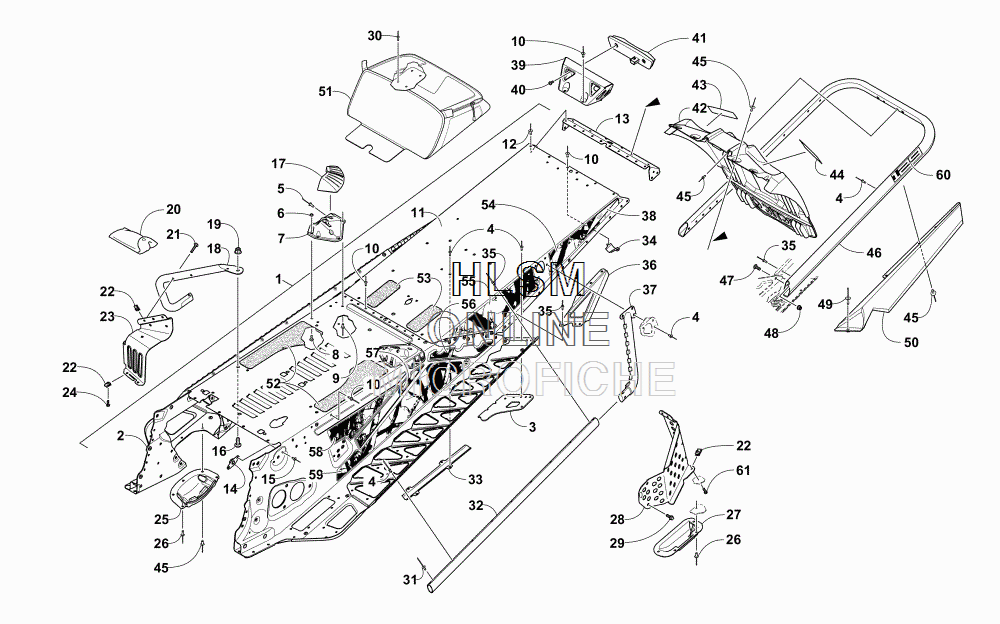

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 9000 LTD 129 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
-2707-848 COMPLETE CHASSIS ASSEMBLY - WHITECOMPLETE CHASSIS ASSEMBLY - WHITE
-
12707-938 TUNNEL ASSEMBLY - WHITE (INC. 2-13)TUNNEL ASSEMBLY - WHITE (INC. 2-13)
-
22707-936 ...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)
-
31707-918 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE
-
31707-919 ......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-904 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE
-
71707-905 ...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
112707-932 ...TUNNEL, REAR - WHITE...TUNNEL, REAR - WHITE
-
128060-482 ...RIVET...RIVET
-
131707-834 ...END CAP, TUNNEL - WHITE...END CAP, TUNNEL - WHITE
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-708 RIVETRIVET
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
176606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
176606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
182707-684 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
182707-685 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUTNUT
-
200744-088 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231707-802 FOOTREST - RIGHT - WHITEFOOTREST - RIGHT - WHITE
-
231707-803 FOOTREST - LEFT - WHITEFOOTREST - LEFT - WHITE
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
282707-084 SHIELD, BRAKE DISC - WHITESHIELD, BRAKE DISC - WHITE
-
298408-613 SCREW, CAPSCREW, CAP
-
308061-628 RIVETRIVET
-
311623-130 RIVETRIVET
-
321707-899 ROLL, TUNNEL - WHITEROLL, TUNNEL - WHITE
-
330630-338 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
340630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
351623-241 RIVETRIVET
-
362707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
362707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-908 GUSSET, TUNNEL ROLL - RIGHT - WHITEGUSSET, TUNNEL ROLL - RIGHT - WHITE
-
371707-909 GUSSET, TUNNEL ROLL - LEFT - WHITEGUSSET, TUNNEL ROLL - LEFT - WHITE
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390730-228 BRACKET, MOUNTING - TAILLIGHT - WHITEBRACKET, MOUNTING - TAILLIGHT - WHITE
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
458061-706 RIVETRIVET
-
462707-581 BUMPER, REAR - ORANGEBUMPER, REAR - ORANGE
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
498060-710 RIVETRIVET
-
506606-870 FLARE, TUNNEL - RIGHTFLARE, TUNNEL - RIGHT
-
506606-871 FLARE, TUNNEL - LEFTFLARE, TUNNEL - LEFT
-
517606-419 SADDLEBAG, REARSADDLEBAG, REAR
-
526606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
526606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
536606-877 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
543621-384 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
543621-385 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
553621-386 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
553621-387 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
563621-388 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
563621-389 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
573621-392 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
573621-393 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
583621-394 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
583621-395 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
593621-390 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
593621-391 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
603621-402 DECAL, BUMPER - "129"DECAL, BUMPER - "129"
-
618470-520 SCREW, MACHINESCREW, MACHINE
