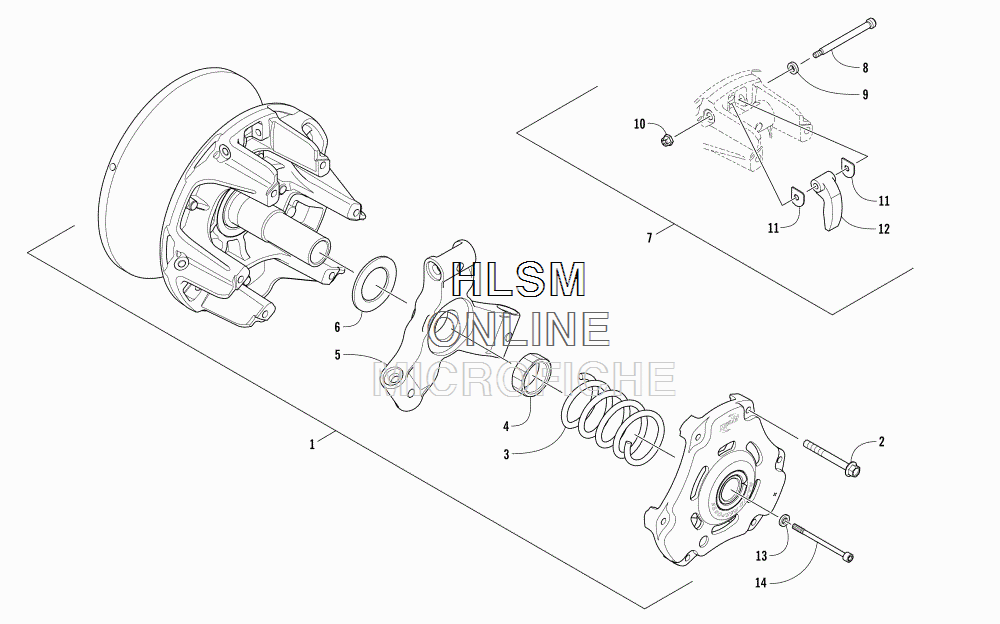

DRIVE CLUTCH для Arctic Cat ZR 8000 LXR ES 137 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-881 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)
    CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)
  • 2
    0646-950 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-877 SPRING, DRIVE CLUTCH
    SPRING, DRIVE CLUTCH
  • 4
    0646-466 NUT, JAM
    NUT, JAM
  • 5
    0646-957 SPIDER
    SPIDER
  • 6
    0646-965 SHIM - 1.35X1.575X0.030
    SHIM - 1.35X1.575X0.030
  • 6
    0646-964 SHIM - 1.27X210X0.70
    SHIM - 1.27X210X0.70
  • 6
    0646-949 SHIM - 1.270X1.625X.120
    SHIM - 1.270X1.625X.120
  • 7
    7639-127 KIT, CAM ARM (INC. 8-11)
    KIT, CAM ARM (INC. 8-11)
  • 8
    0823-396 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 9
    2623-091 ...WASHER
    ...WASHER
  • 10
    0823-399 ...NUT, LOCK
    ...NUT, LOCK
  • 11
    0646-880 ...WASHER, THRUST
    ...WASHER, THRUST
  • 12
    0646-907 ARM, CAM
    ARM, CAM
  • 13
    1623-649 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 14
    2623-180 BOLT, CLUTCH
    BOLT, CLUTCH
