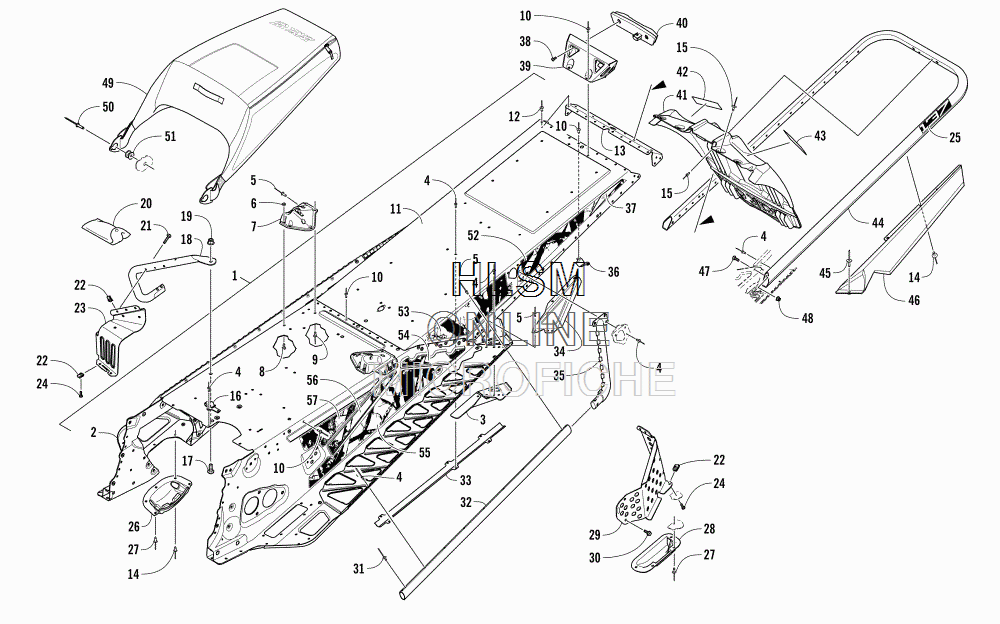

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 LTD ES 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
-2707-114 COMPLETE CHASSIS ASSEMBLY WHITECOMPLETE CHASSIS ASSEMBLY WHITE
-
12707-242 TUNNEL ASSEMBLY WHITE (INC. 2-13)TUNNEL ASSEMBLY WHITE (INC. 2-13)
-
22707-241 ...TUNNEL, FRONT - ASSEMBLY WHITE (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY WHITE (INC. 3-4)
-
32707-246 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE
-
32707-247 ......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-904 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE
-
71707-905 ...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111707-839 ...TUNNEL, REAR WHITE...TUNNEL, REAR WHITE
-
128060-504 ...RIVET...RIVET
-
131707-834 ...END CAP, TUNNEL - WHITE...END CAP, TUNNEL - WHITE
-
148061-686 RIVETRIVET
-
158061-706 RIVETRIVET
-
160645-709 CLIP, ROUTINGCLIP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
181707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
198427-802 NUTNUT
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231707-802 FOOTREST - RIGHT - WHITEFOOTREST - RIGHT - WHITE
-
231707-803 FOOTREST - LEFT - WHITEFOOTREST - LEFT - WHITE
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
253621-403 DECAL, REAR BUMPER - "137"DECAL, REAR BUMPER - "137"
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-084 SHIELD, BRAKE DISC - WHITESHIELD, BRAKE DISC - WHITE
-
308408-613 SCREW, CAPSCREW, CAP
-
311623-130 RIVETRIVET
-
321707-899 ROLL, TUNNEL - WHITEROLL, TUNNEL - WHITE
-
330630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341707-906 GUSSET, RUNNING BOARD - RIGHT - WHITEGUSSET, RUNNING BOARD - RIGHT - WHITE
-
341707-907 GUSSET, RUNNING BOARD - LEFT - WHITEGUSSET, RUNNING BOARD - LEFT - WHITE
-
351707-908 GUSSET, TUNNEL ROLL - RIGHT - WHITEGUSSET, TUNNEL ROLL - RIGHT - WHITE
-
351707-909 GUSSET, TUNNEL ROLL - LEFT - WHITEGUSSET, TUNNEL ROLL - LEFT - WHITE
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
388470-510 SCREW, MACHINESCREW, MACHINE
-
390730-228 BRACKET, MOUNTING - TAILLIGHT - WHITEBRACKET, MOUNTING - TAILLIGHT - WHITE
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
442707-587 BUMPER, REAR - ORANGEBUMPER, REAR - ORANGE
-
458060-710 RIVETRIVET
-
466606-870 FLARE, TUNNEL - RIGHTFLARE, TUNNEL - RIGHT
-
466606-871 FLARE, TUNNEL - LEFTFLARE, TUNNEL - LEFT
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-600 SADDLEBAGSADDLEBAG
-
508060-630 RIVETRIVET
-
511623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
523621-548 DECAL, TUNNEL - RIGHT - "137"DECAL, TUNNEL - RIGHT - "137"
-
523621-549 DECAL, TUNNEL - LEFT - "137"DECAL, TUNNEL - LEFT - "137"
-
533621-386 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
533621-387 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
543621-388 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
543621-389 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
553621-390 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
553621-391 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
563621-392 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
563621-393 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
573621-394 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
573621-395 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
