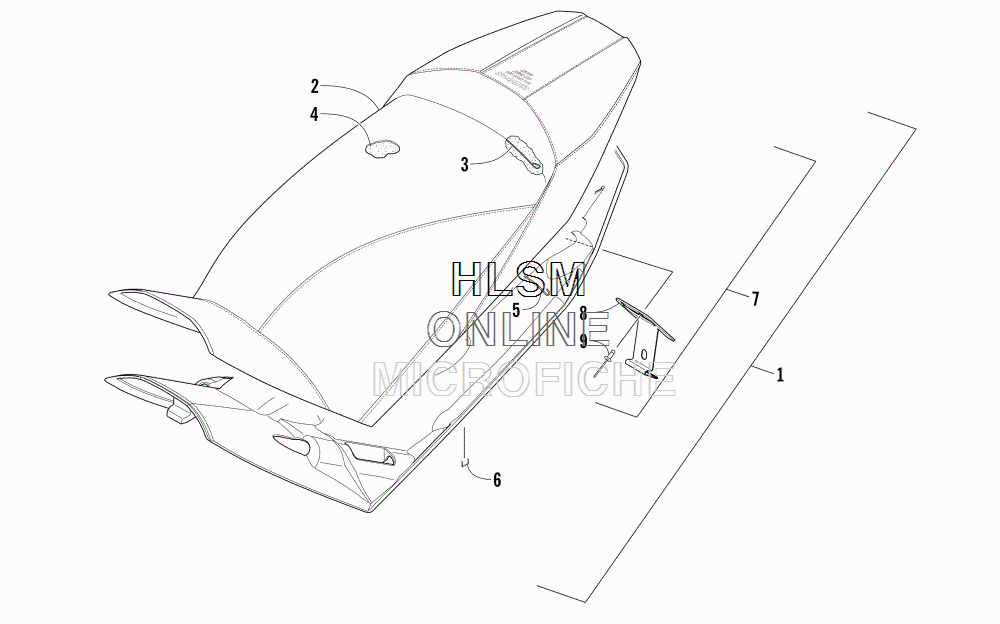

SEAT ASSEMBLY для Arctic Cat ZR 8000 EL TIGRE ES 137 BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
16706-203 COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-9)COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-9)
-
26706-204 ...COVER, SEAT - BLACK (INC. 3)...COVER, SEAT - BLACK (INC. 3)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
40717-215 ...FOAM, SEAT...FOAM, SEAT
-
56606-461 ...WIRE, SEAT...WIRE, SEAT
-
60624-528 ...STAPLE...STAPLE
-
75706-240 ...SEAT-BASE (INC. 8-9)...SEAT-BASE (INC. 8-9)
-
86606-452 ......LATCH, SEAT......LATCH, SEAT
-
98061-686 ......RIVET......RIVET
