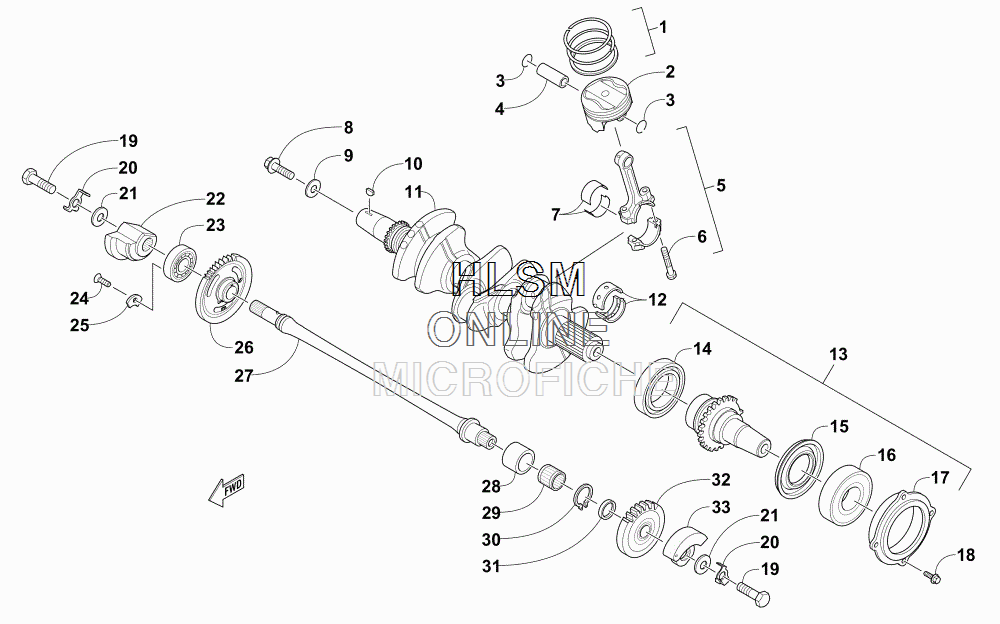

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat ZR 7000 LXR 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13020-427 RING SET, PISTONRING SET, PISTON
-
23020-426 PISTONPISTON
-
33020-192 CIRCLIPCIRCLIP
-
43020-428 PIN, PISTONPIN, PISTON
-
53020-423 ROD, CONNECTING - ASSEMBLY (INC. 6)ROD, CONNECTING - ASSEMBLY (INC. 6)
-
63020-424 ...SCREW, CAP...SCREW, CAP
-
73020-197 BEARING, CONNECTING ROD - WHITEBEARING, CONNECTING ROD - WHITE
-
73020-198 BEARING, CONNECTING ROD - BLUEBEARING, CONNECTING ROD - BLUE
-
73020-199 BEARING, CONNECTING ROD - BLACKBEARING, CONNECTING ROD - BLACK
-
73020-200 BEARING, CONNECTING ROD - BROWNBEARING, CONNECTING ROD - BROWN
-
73020-201 BEARING, CONNECTING ROD - GREENBEARING, CONNECTING ROD - GREEN
-
73020-202 BEARING, CONNECTING ROD - YELLOWBEARING, CONNECTING ROD - YELLOW
-
73020-425 BEARING, CONNECTING ROD - PINKBEARING, CONNECTING ROD - PINK
-
83020-203 SCREW, CAPSCREW, CAP
-
93020-204 WASHERWASHER
-
103020-206 KEYKEY
-
113020-422 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
123020-208 BEARING, CRANKSHAFT - BLACKBEARING, CRANKSHAFT - BLACK
-
123020-209 BEARING, CRANKSHAFT - BROWNBEARING, CRANKSHAFT - BROWN
-
123020-210 BEARING, CRANKSHAFT - GREENBEARING, CRANKSHAFT - GREEN
-
123020-211 BEARING, CRANKSHAFT - YELLOWBEARING, CRANKSHAFT - YELLOW
-
123020-212 BEARING, CRANKSHAFT - PINKBEARING, CRANKSHAFT - PINK
-
123020-213 BEARING, CRANKSHAFT - REDBEARING, CRANKSHAFT - RED
-
123020-214 BEARING, CRANKSHAFT - WHITEBEARING, CRANKSHAFT - WHITE
-
133020-429 SHAFT, OUTPUT - ASSEMBLY (INC. 14-17)SHAFT, OUTPUT - ASSEMBLY (INC. 14-17)
-
143020-216 ...BEARING...BEARING
-
153020-217 ...SEAL...SEAL
-
163020-218 ...BEARING...BEARING
-
173020-430 ...HOUSING, BEARING...HOUSING, BEARING
-
183020-220 SCREW, CAPSCREW, CAP
-
193020-221 SCREW, CAPSCREW, CAP
-
203020-222 WASHER, TABWASHER, TAB
-
213020-223 WASHERWASHER
-
223020-433 COUNTERWEIGHTCOUNTERWEIGHT
-
233020-225 BEARINGBEARING
-
243020-226 SCREW, MACHINESCREW, MACHINE
-
253020-227 PLATE, RETAININGPLATE, RETAINING
-
263020-432 GEAR, BALANCERGEAR, BALANCER
-
273020-431 SHAFT, BALANCERSHAFT, BALANCER
-
283020-230 HOUSING, BEARINGHOUSING, BEARING
-
293020-231 BEARINGBEARING
-
303020-232 CIRCLIPCIRCLIP
-
313020-233 SPACERSPACER
-
323020-234 GEAR, DRIVENGEAR, DRIVEN
-
333020-235 COUNTERWEIGHTCOUNTERWEIGHT
