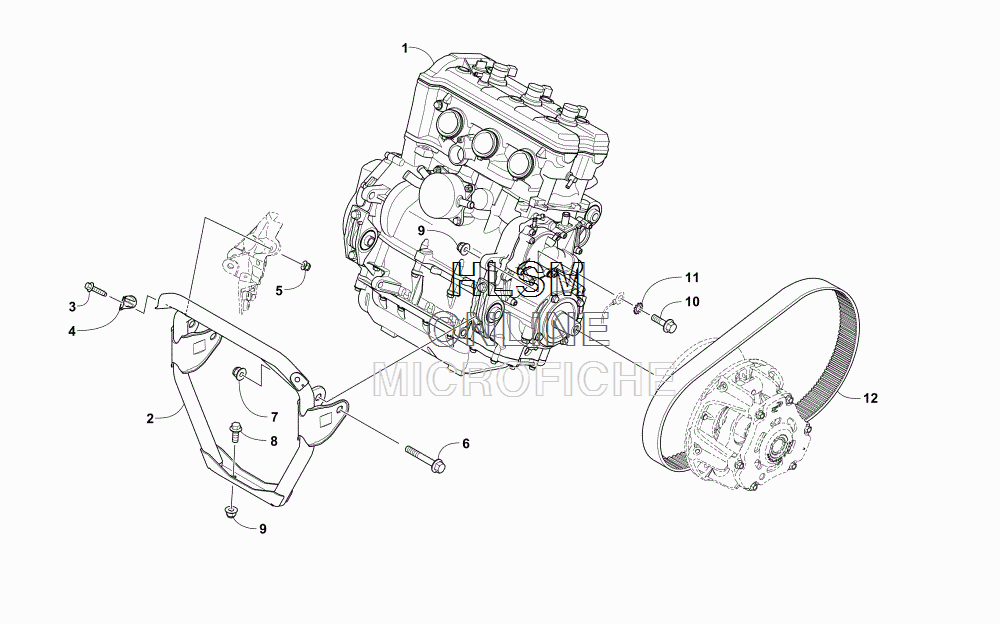

ENGINE AND RELATED PARTS для Arctic Cat ZR 7000 LTD 137 ORANGE - 2017 года выпуска`
-
№АртикулНазвание
-
10662-614 ENGINEENGINE
-
20708-644 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUTNUT
-
68413-275 SCREW, CAPSCREW, CAP
-
78427-202 NUT, LOCKNUT, LOCK
-
88408-025 SCREW, CAPSCREW, CAP
-
98427-002 NUT, LOCKNUT, LOCK
-
108408-030 SCREW, CAPSCREW, CAP
-
118053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
120627-070 BELT, DRIVEBELT, DRIVE
