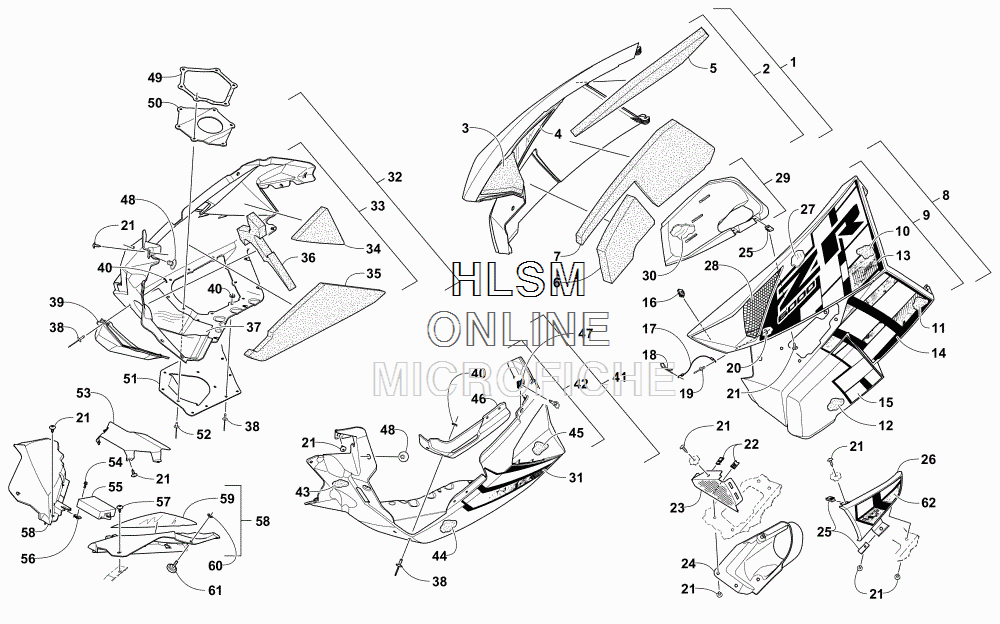

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES 137 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-130 PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, 17-20 AND 62)
    PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, 17-20 AND 62)
  • 2
    3718-180 ...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 17-20)
    ...PANEL, SIDE - RIGHT W/FOAM - BLACK (INC. 3-7 AND 17-20)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE - MIDDLE PANEL - RIGHT
    ......FOIL, PROTECTIVE - MIDDLE PANEL - RIGHT
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 8
    5718-131 PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)
    PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)
  • 9
    4718-553 ...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 16-20)
    ...PANEL, SIDE W/FOAM- LEFT - BLACK (INC. 10-12 AND 16-20)
  • 10
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 11
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 12
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 13
    3621-352 ...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK - "ZR 6000"
    ...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK - "ZR 6000"
  • 13
    3621-353 ...DECAL, SIDE PANEL - UPPER - LEFT - BLACK - "ZR 6000"
    ...DECAL, SIDE PANEL - UPPER - LEFT - BLACK - "ZR 6000"
  • 14
    3621-362 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK
    ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK
  • 14
    3621-363 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK
    ...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK
  • 15
    3621-360 ...DECAL, SIDE PANEL - FRONT - RIGHT
    ...DECAL, SIDE PANEL - FRONT - RIGHT
  • 15
    3621-361 ...DECAL, SIDE PANEL - FRONT - LEFT
    ...DECAL, SIDE PANEL - FRONT - LEFT
  • 16
    1623-637 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 17
    0607-447 ...CABLE
    ...CABLE
  • 18
    0605-283 ...CLIP, HAIRPIN
    ...CLIP, HAIRPIN
  • 19
    8060-486 ...RIVET
    ...RIVET
  • 20
    8050-127 ...WASHER
    ...WASHER
  • 21
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    6606-925 SCREEN, INTAKE
    SCREEN, INTAKE
  • 24
    2602-794 DUCT, INTAKE - INNER
    DUCT, INTAKE - INNER
  • 25
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    2602-793 DUCT, INTAKE - OUTER - BLACK
    DUCT, INTAKE - OUTER - BLACK
  • 27
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 28
    6606-925 SCREEN, INTAKE
    SCREEN, INTAKE
  • 29
    1702-369 DUCT, BELT COOLING (INC. 30)
    DUCT, BELT COOLING (INC. 30)
  • 30
    6606-694 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 31
    3621-364 DECAL, SKID PLATE - RIGHT
    DECAL, SKID PLATE - RIGHT
  • 31
    3621-365 DECAL, SKID PLATE - LEFT
    DECAL, SKID PLATE - LEFT
  • 32
    5718-140 PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 31 AND 33-40)
    PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 31 AND 33-40)
  • 33
    4718-158 ...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 34-40)
    ...PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 34-40)
  • 34
    0617-640 FOAM, SKID PLATE - UPPER REAR - RIGHT
    FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 35
    0617-638 FOAM, SKID PLATE - CENTER FRONT - RIGHT
    FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 36
    0617-636 FOAM, SKID PLATE - UPPER FRONT - RIGHT
    FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 37
    2612-970 FOIL, PROTECTIVE - RIGHT
    FOIL, PROTECTIVE - RIGHT
  • 38
    8061-708 RIVET
    RIVET
  • 39
    2612-754 DEFLECTOR, HEAT
    DEFLECTOR, HEAT
  • 40
    0123-802 WASHER
    WASHER
  • 41
    5718-137 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 31, 38, 40, AND 42-46)
    PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 31, 38, 40, AND 42-46)
  • 42
    3718-789 ...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)
    ...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)
  • 43
    0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT
    ......FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 44
    0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT
    ......FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 45
    0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT
    ......FOAM, SKID PLATE - UPPER REAR - LEFT
  • 46
    6606-613 ......PANEL, REINFORCEMENT
    ......PANEL, REINFORCEMENT
  • 47
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 48
    6606-592 PIN, RETAINING
    PIN, RETAINING
  • 49
    2612-972 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 50
    2612-971 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 51
    1712-963 DEFLECTOR, EXHAUST OUTLET - BLACK
    DEFLECTOR, EXHAUST OUTLET - BLACK
  • 52
    8061-710 RIVET
    RIVET
  • 53
    6606-940 SHIELD, HEAT - ECM
    SHIELD, HEAT - ECM
  • 54
    8408-620 SCREW, CAP
    SCREW, CAP
  • 55
    0730-266 ECM
    ECM
  • 56
    0423-031 NUT, SPEED
    NUT, SPEED
  • 57
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 58
    6606-342 FASCIA, FRONT - RIGHT - BLACK
    FASCIA, FRONT - RIGHT - BLACK
  • 58
    3718-303 FASCIA, FRONT - LEFT - BLACK (INC. 59)
    FASCIA, FRONT - LEFT - BLACK (INC. 59)
  • 59
    6606-405 ...FOIL, PROTECTIVE - FILLER PANEL - LEFT
    ...FOIL, PROTECTIVE - FILLER PANEL - LEFT
  • 60
    2623-001 NUT, PUSH
    NUT, PUSH
  • 61
    1623-999 SCREW, THUMB
    SCREW, THUMB
  • 62
    3621-358 DECAL, SIDE PANEL - MID - RIGHT
    DECAL, SIDE PANEL - MID - RIGHT
  • 62
    3621-367 DECAL, SIDE PANEL - VENT - LEFT
    DECAL, SIDE PANEL - VENT - LEFT
