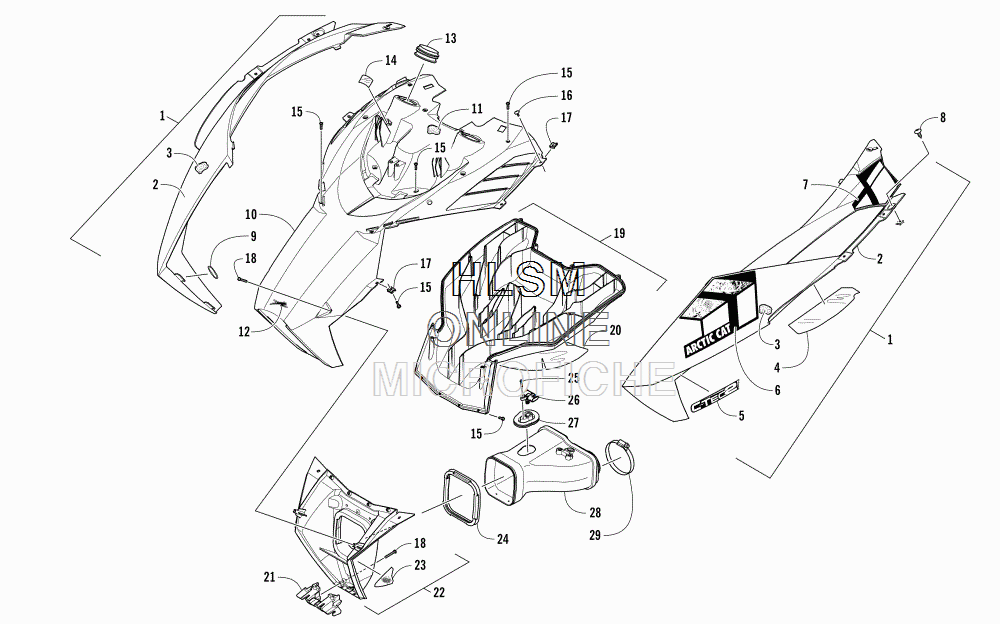

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 6000 LXR ES 137 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-094 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5-7)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5-7)
  • 1
    5718-095 HOOD W/DECALS - LEFT - BLACK (INC. 2-7)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-7)
  • 2
    3718-588 ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
    ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
  • 2
    3718-589 ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
    ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
  • 3
    0617-646 ......FOAM, HOOD - RIGHT
    ......FOAM, HOOD - RIGHT
  • 3
    0617-647 ......FOAM, HOOD - LEFT
    ......FOAM, HOOD - LEFT
  • 4
    6606-407 ......FOIL, PROTECTIVE, HOOD - LEFT
    ......FOIL, PROTECTIVE, HOOD - LEFT
  • 5
    0621-906 ...DECAL, HOOD - "C-TEC2"
    ...DECAL, HOOD - "C-TEC2"
  • 6
    3621-260 ...DECAL, HOOD - FRONT - RIGHT
    ...DECAL, HOOD - FRONT - RIGHT
  • 6
    3621-261 ...DECAL, HOOD - FRONT - LEFT
    ...DECAL, HOOD - FRONT - LEFT
  • 7
    3621-258 ...DECAL, HOOD - REAR - RIGHT
    ...DECAL, HOOD - REAR - RIGHT
  • 7
    3621-259 ...DECAL, HOOD - REAR - LEFT
    ...DECAL, HOOD - REAR - LEFT
  • 8
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    1623-960 O-RING
    O-RING
  • 10
    5706-356 PLENUM, INTAKE - UPPER (INC. 11)
    PLENUM, INTAKE - UPPER (INC. 11)
  • 11
    0617-648 ...FOAM, INTAKE
    ...FOAM, INTAKE
  • 12
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 13
    6606-386 SEAL
    SEAL
  • 14
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 15
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    1623-939 NUT, U
    NUT, U
  • 18
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    6706-151 PLENUM, INTAKE - LOWER REAR (INC. 20)
    PLENUM, INTAKE - LOWER REAR (INC. 20)
  • 20
    7606-307 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 21
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 22
    5706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 23)
    PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 23)
  • 23
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 24
    0617-624 ADAPTER, BOOT
    ADAPTER, BOOT
  • 25
    2623-016 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    0824-052 SENSOR, T-MAP
    SENSOR, T-MAP
  • 27
    2670-444 BOOT
    BOOT
  • 28
    1770-056 BOOT, INTAKE
    BOOT, INTAKE
  • 29
    0423-018 CLAMP, HOSE
    CLAMP, HOSE
