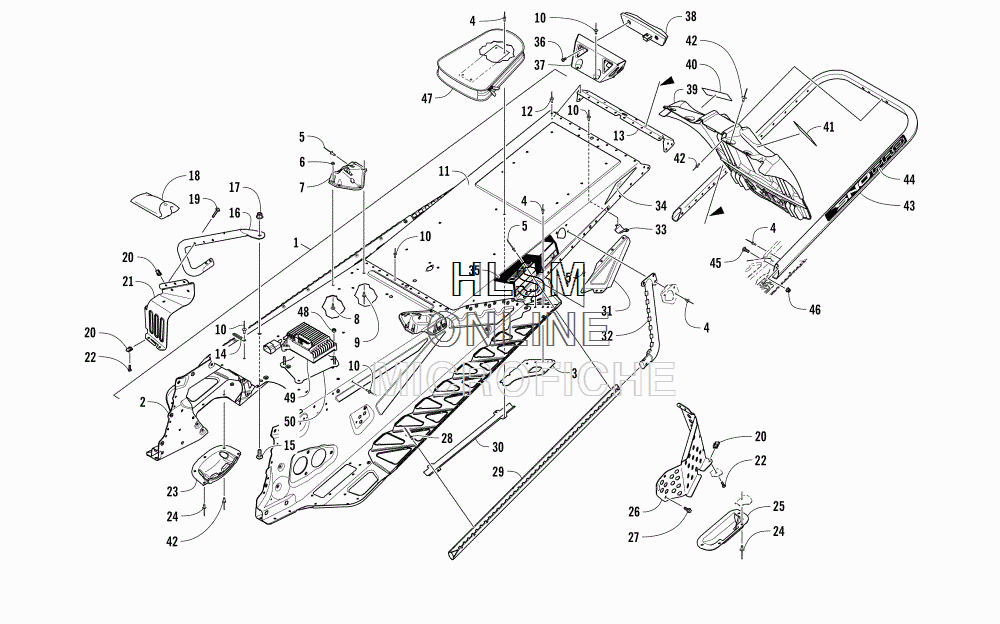

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 4000 SNO PRO 129 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
-1707-823 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-912 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-241 RIVETRIVET
-
68422-502 NUTNUT
-
71707-644 BRACKET, MOUNTING - REAR SPAR - RIGHTBRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 BRACKET, MOUNTING - REAR SPAR - LEFTBRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 SCREW, MACHINESCREW, MACHINE
-
91623-257 RIVETRIVET
-
108060-682 RIVETRIVET
-
111607-250 TUNNEL, REARTUNNEL, REAR
-
128060-482 RIVETRIVET
-
131607-104 END CAP, TUNNELEND CAP, TUNNEL
-
141623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
161707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
178427-802 NUTNUT
-
180744-076 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
210607-997 FOOTREST - LEFTFOOTREST - LEFT
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
261607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
278408-613 SCREW, CAPSCREW, CAP
-
281623-130 RIVETRIVET
-
291607-092 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
300630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
311607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
321607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
321607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
330630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
340621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
353621-340 DECAL, TUNNEL - RIGHT - "129"DECAL, TUNNEL - RIGHT - "129"
-
353621-341 DECAL, TUNNEL - LEFT - "129"DECAL, TUNNEL - LEFT - "129"
-
368470-510 SCREW, MACHINESCREW, MACHINE
-
370630-328 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
380609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
396606-394 SNOWFLAPSNOWFLAP
-
405611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
415611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
428061-706 RIVETRIVET
-
432707-580 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
443621-339 DECAL, REAR BUMPER - "SNO PRO" - GREENDECAL, REAR BUMPER - "SNO PRO" - GREEN
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
476606-615 BAG, BELTBAG, BELT
-
488422-602 NUTNUT
-
490630-246 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
500730-223 PLATE, MOUNTINGPLATE, MOUNTING
