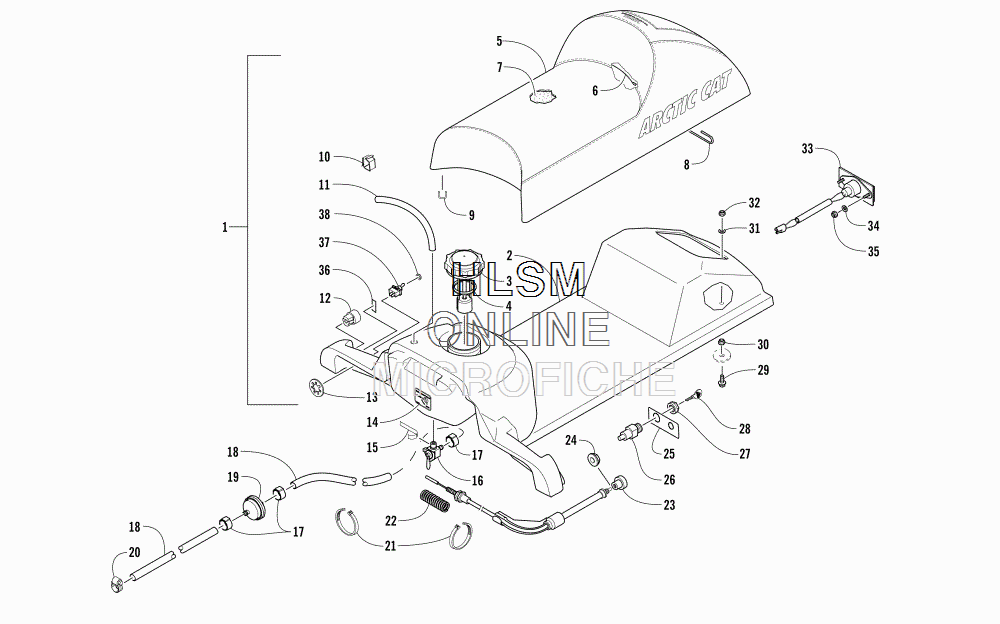

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 120 INTERNATIONAL GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
17903-234 COMPLETE SEAT - ASSEMBLY - GREEN (INC. 2-9)COMPLETE SEAT - ASSEMBLY - GREEN (INC. 2-9)
-
22670-566 ...TANK, GAS/SEAT-BASE...TANK, GAS/SEAT-BASE
-
32670-271 ...CAP, GAS TANK - W/GAUGE (INC. 4)...CAP, GAS TANK - W/GAUGE (INC. 4)
-
40109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
55706-343 ...COVER, SEAT - GREEN (INC. 6)...COVER, SEAT - GREEN (INC. 6)
-
65606-156 ......WIRE, SEAT......WIRE, SEAT
-
71706-017 ...FOAM, SEAT...FOAM, SEAT
-
82606-942 ...WIRE, SEAT...WIRE, SEAT
-
90624-528 ...STAPLE...STAPLE
-
100123-394 CLIP, CABLECLIP, CABLE
-
110610-960 HOSEHOSE
-
120116-469 BUSHING, RECOIL STARTERBUSHING, RECOIL STARTER
-
131623-841 NUT, PUSH - 0.850 X 1.20"NUT, PUSH - 0.850 X 1.20"
-
143611-856 DECAL, SHUT-OFF VALVEDECAL, SHUT-OFF VALVE
-
150670-289 TAPE, TEFLONTAPE, TEFLON
-
162670-064 VALVE, SHUT-OFF - GAS TANKVALVE, SHUT-OFF - GAS TANK
-
170610-415 CLAMP, HOSECLAMP, HOSE
-
180410-143 HOSE - 25 FTHOSE - 25 FT
-
192670-543 FILTER, FUELFILTER, FUEL
-
200623-373 CLAMP, HOSECLAMP, HOSE
-
210123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
222670-144 SPRINGSPRING
-
230687-230 CABLE, CHOKE (INC. 24)CABLE, CHOKE (INC. 24)
-
240687-181 ...NUT...NUT
-
254611-767 DECAL, SWITCH/CHOKEDECAL, SWITCH/CHOKE
-
260109-822 SWITCH, IGNITION (INC. 27-28)SWITCH, IGNITION (INC. 27-28)
-
270609-111 ...NUT, RETAINING...NUT, RETAINING
-
280116-065 ...KEY...KEY
-
298020-040 SCREW, CAPSCREW, CAP
-
308041-366 NUT, LOCKNUT, LOCK
-
310623-184 WASHERWASHER
-
320123-108 NUT, CAPNUT, CAP
-
330609-934 TAILLIGHT ASSEMBLYTAILLIGHT ASSEMBLY
-
348450-079 WASHERWASHER
-
358427-502 NUT, LOCKNUT, LOCK
-
361621-286 DECAL, SWITCH - "ON/OFF"DECAL, SWITCH - "ON/OFF"
-
370609-904 SWITCHSWITCH
-
380609-905 NUTNUT
