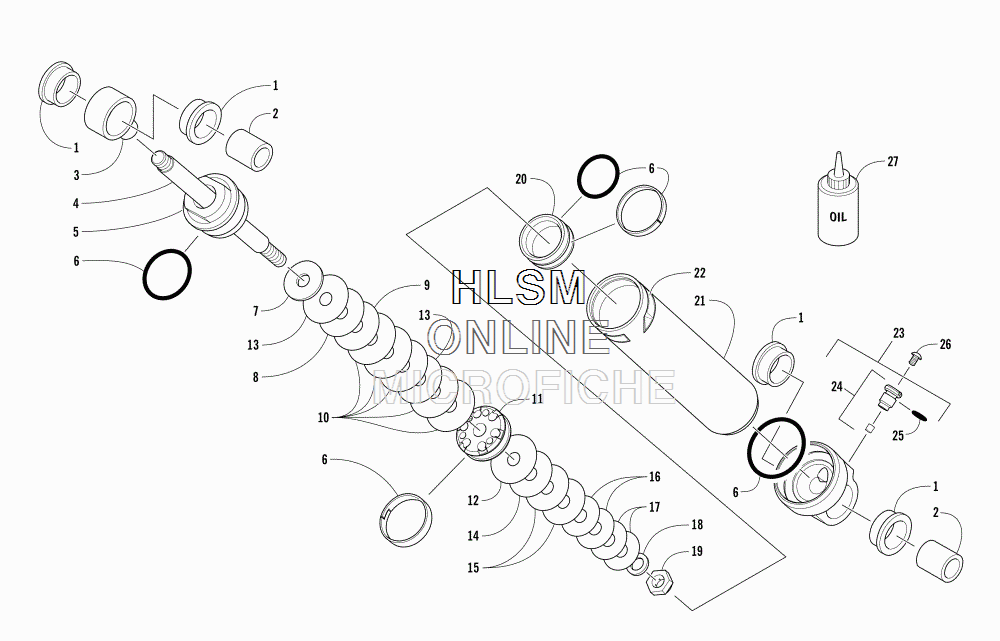

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat XF 9000 CROSSTREK 137 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-686 SHOCK, REAR ARMSHOCK, REAR ARM
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-810 ROD, SHOCKROD, SHOCK
-
54604-127 BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
-
64604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-874 WASHER, TOP OUTWASHER, TOP OUT
-
83603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
93604-873 VALVE, 1.425 X 0.010 IN.VALVE, 1.425 X 0.010 IN.
-
103604-871 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
113604-870 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
123604-886 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
133603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
143603-146 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
153603-126 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
163603-117 VALVE, 0.900 X 0.016 IN.VALVE, 0.900 X 0.016 IN.
-
173603-107 VALVE, 0.800 X 0.016 IN.VALVE, 0.800 X 0.016 IN.
-
183604-775 WASHER, BACKUPWASHER, BACKUP
-
193604-739 NUTNUT
-
203604-876 PISTON, FLOATINGPISTON, FLOATING
-
213604-914 BODY, SHOCKBODY, SHOCK
-
221621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
233604-894 END CAP, SHOCK - ASSEMBLY (INC. 24-25)END CAP, SHOCK - ASSEMBLY (INC. 24-25)
-
243604-751 ...VALVE, PRESSURE (INC. 25)...VALVE, PRESSURE (INC. 25)
-
253604-733 ......O-RING, VALVE......O-RING, VALVE
-
263604-750 SCREW, MACHINESCREW, MACHINE
-
275639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
