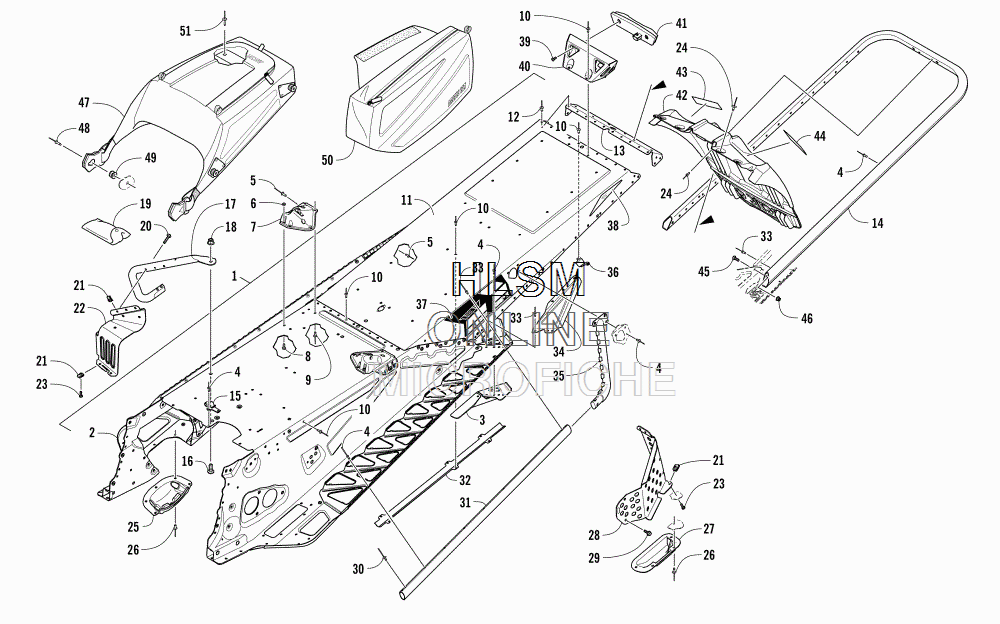

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 8000 CROSSTREK ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-1707-985 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-236 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
22707-235 ...TUNNEL, FRONT ASSEMBLY (INC. 3-4)...TUNNEL, FRONT ASSEMBLY (INC. 3-4)
-
31607-332 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
31607-333 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111607-251 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
142707-586 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
150645-709 CLIP, ROUTINGCLIP, ROUTING
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
171707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
171707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
188427-802 NUTNUT
-
190744-087 KIT, TOOLKIT, TOOL
-
208468-535 SCREW, MACHINESCREW, MACHINE
-
211623-637 CLIP, U-NUTCLIP, U-NUT
-
220607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
220607-997 FOOTREST - LEFTFOOTREST - LEFT
-
238470-516 SCREW, MACHINESCREW, MACHINE
-
248061-706 RIVETRIVET
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
281607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
298408-613 SCREW, CAPSCREW, CAP
-
301623-130 RIVETRIVET
-
311607-092 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
320630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331623-241 RIVETRIVET
-
341607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
341607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
351607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
351607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
373621-138 DECAL, TUNNEL "137" - RIGHTDECAL, TUNNEL "137" - RIGHT
-
373621-139 DECAL, TUNNEL "137" - LEFTDECAL, TUNNEL "137" - LEFT
-
380621-990 DECAL, REFLECTOR - RED REDDECAL, REFLECTOR - RED RED
-
398470-510 SCREW, MACHINESCREW, MACHINE
-
400630-328 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
477606-075 SADDLEBAG - REARSADDLEBAG - REAR
-
488060-630 RIVETRIVET
-
491623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
507606-072 SADDLEBAG - RIGHTSADDLEBAG - RIGHT
-
507606-073 SADDLEBAG - LEFTSADDLEBAG - LEFT
-
518061-710 RIVETRIVET
