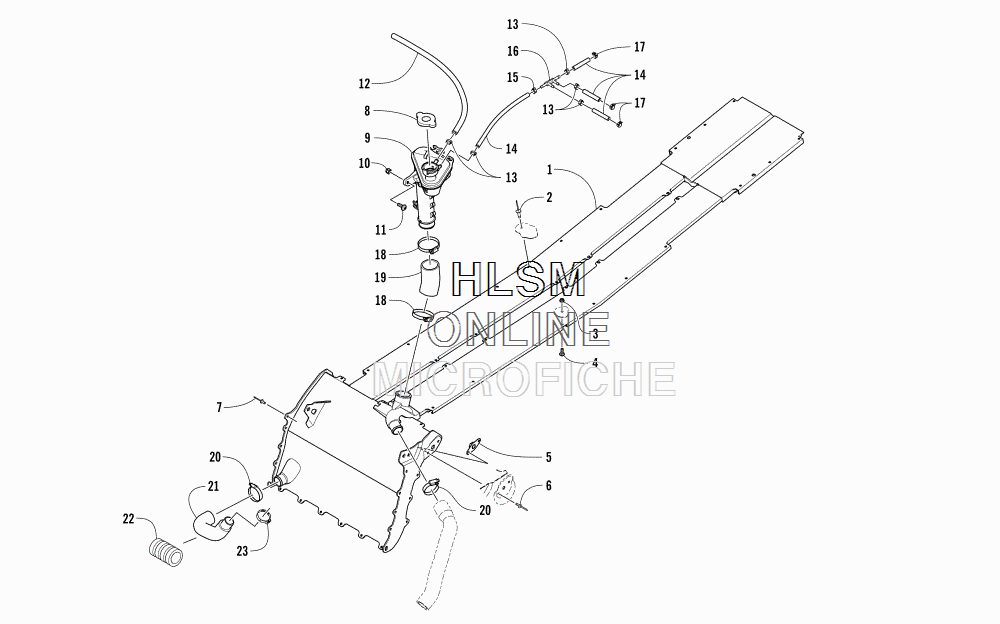

COOLING ASSEMBLY для Arctic Cat XF 6000 CROSS COUNTRY LTD ES 137 GREEN EARLY BUILD - 2017 года выпуска`
-
№АртикулНазвание
-
10713-115 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVETRIVET
-
38422-502 NUTNUT
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVETRIVET
-
78060-706 RIVETRIVET
-
82606-284 CAPCAP
-
90613-135 TANK, COOLANTTANK, COOLANT
-
108422-602 NUTNUT
-
118476-625 SCREW, CAPSCREW, CAP
-
120610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
120610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
131623-655 CLAMP, HOSECLAMP, HOSE
-
140610-538 HOSE - 25 FTHOSE - 25 FT
-
151623-619 CLAMP, HOSECLAMP, HOSE
-
160610-717 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
170623-063 CLAMP, HOSECLAMP, HOSE
-
180423-317 CLAMPCLAMP
-
190610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
202623-088 CLAMP, HOSECLAMP, HOSE
-
210610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
220619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
231623-656 CLAMP, HOSECLAMP, HOSE
