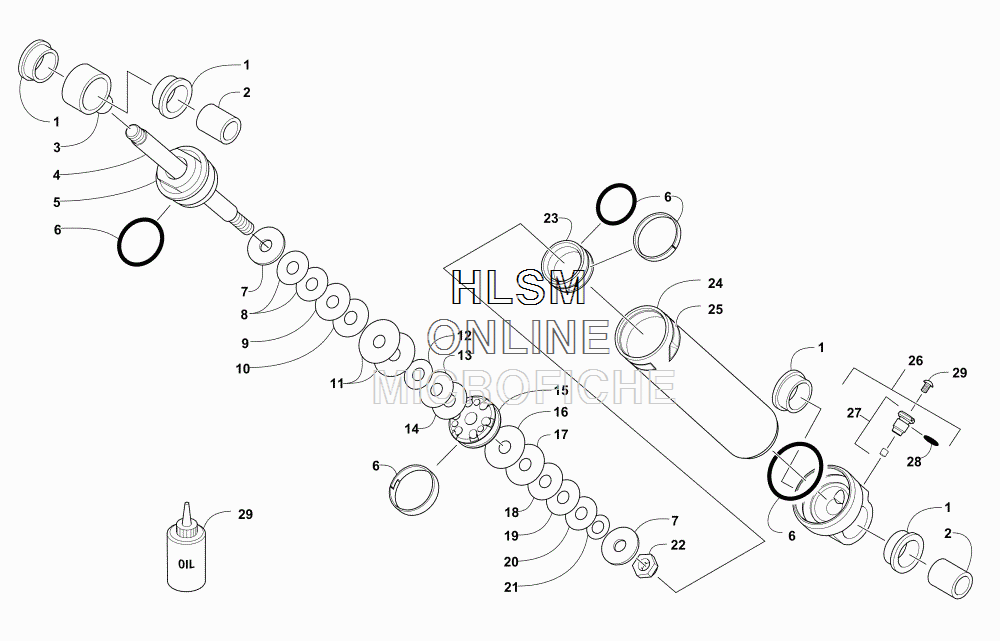

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat PANTERA 7000 XT LTD BLACK INTERNATIONAL - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-683 SHOCK ABSORBERSHOCK ABSORBER
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-760 ROD, SHOCKROD, SHOCK
-
54604-126 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
64604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-789 WASHER, TOP OUTWASHER, TOP OUT
-
83603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
93603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
103603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
113603-175 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
123603-122 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
133603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
143603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
152603-997 PISTON, 0.070 IN. - ORIFICEPISTON, 0.070 IN. - ORIFICE
-
163603-177 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
173603-146 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
183603-126 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
193603-117 VALVE, 0.900 X 0.016 IN.VALVE, 0.900 X 0.016 IN.
-
203603-107 VALVE, 0.800 X 0.016 IN.VALVE, 0.800 X 0.016 IN.
-
213603-097 VALVE, 0.700 X 0.015 IN.VALVE, 0.700 X 0.015 IN.
-
223604-739 NUTNUT
-
233604-772 PISTON, FLOATINGPISTON, FLOATING
-
243604-907 BODY, SHOCKBODY, SHOCK
-
251621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
262704-257 END CAP, SHOCK - ASSEMBLY (INC. 27-28)END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
273604-751 ...VALVE, PRESSURE (INC. 28)...VALVE, PRESSURE (INC. 28)
-
283604-733 ......O-RING, VALVE......O-RING, VALVE
-
293604-750 SCREW, MACHINESCREW, MACHINE
-
305639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
