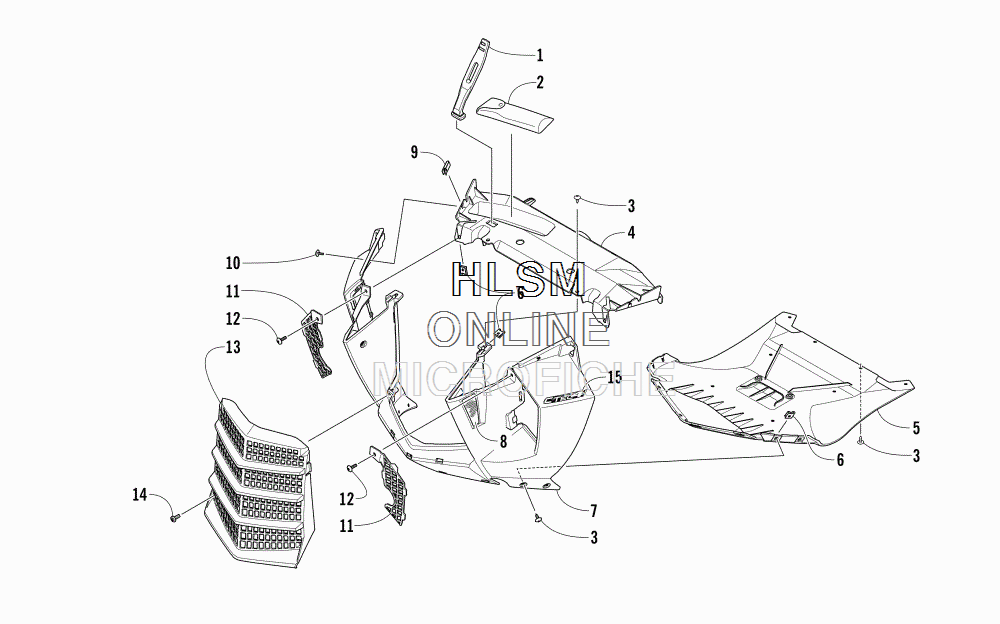

FRONT FASCIA AND CENTER SKID PLATE ASSEMBLY для Arctic Cat PANTERA 7000 XT LTD BLACK EARLY BUILD - 2017 года выпуска`
-
№АртикулНазвание
-
16606-852 STRAP, HOLD-DOWN - HOODSTRAP, HOLD-DOWN - HOOD
-
20744-088 KIT, TOOLKIT, TOOL
-
32623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40613-174 BRACKET, MOUNTING - RADIATOR - UPPERBRACKET, MOUNTING - RADIATOR - UPPER
-
56606-747 SKID PLATE - CENTERSKID PLATE - CENTER
-
61623-939 NUT, UNUT, U
-
74718-282 FRONT FASCIA W/REFLECTORS (INC. 8)FRONT FASCIA W/REFLECTORS (INC. 8)
-
81621-390 ...DECAL, REFLECTOR - AMBER - RIGHT...DECAL, REFLECTOR - AMBER - RIGHT
-
81621-391 ...DECAL, REFLECTOR - AMBER - LEFT...DECAL, REFLECTOR - AMBER - LEFT
-
91623-030 CLIP, U-NUTCLIP, U-NUT
-
100623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
116606-854 CLOSE-OFF - RIGHTCLOSE-OFF - RIGHT
-
116606-855 CLOSE-OFF - LEFTCLOSE-OFF - LEFT
-
120623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
136606-790 GRILLE, RADIATORGRILLE, RADIATOR
-
141623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
152621-997 DECAL, HOOD - "C-TEC4"DECAL, HOOD - "C-TEC4"
