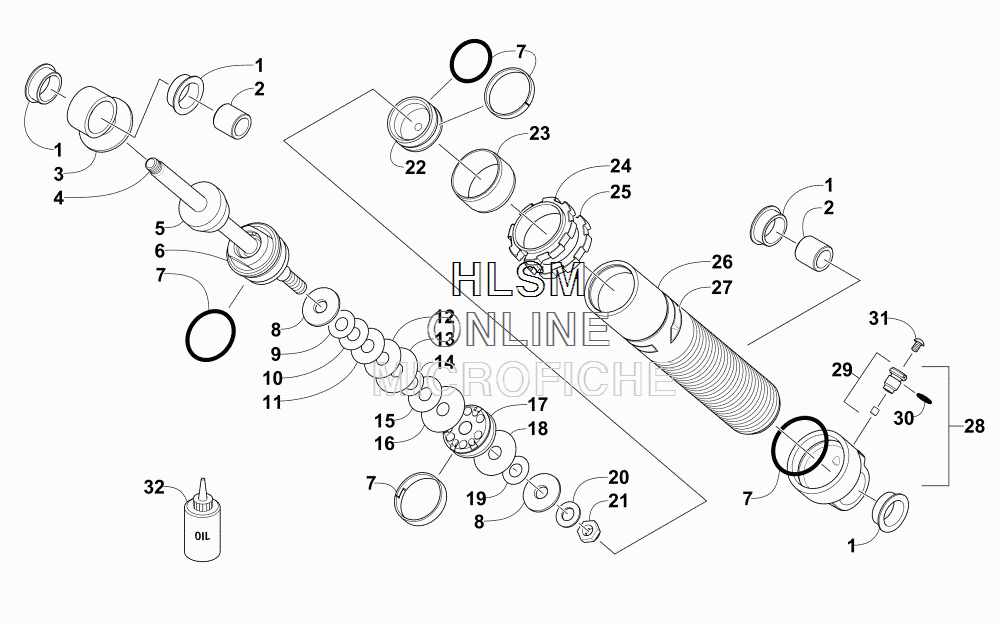

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat PANTERA 7000 LTD BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
-3703-377 SHOCK, SKISHOCK, SKI
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
32603-020 EYELET, SHOCKEYELET, SHOCK
-
43604-762 ROD, SHOCKROD, SHOCK
-
53604-740 BUMPER, SHOCKBUMPER, SHOCK
-
64604-126 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
74604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
83604-789 WASHER, TOP OUTWASHER, TOP OUT
-
93603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
103603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
113603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
123603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
133603-175 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
143603-094 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
153603-122 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
163603-184 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
173604-794 PISTON, 2.7 MM - ORIFICEPISTON, 2.7 MM - ORIFICE
-
183603-174 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
193603-106 VALVE, 0.800 X 0.012 IN.VALVE, 0.800 X 0.012 IN.
-
204604-049 WASHER, BACKUPWASHER, BACKUP
-
213604-739 NUTNUT
-
223604-772 PISTON, FLOATINGPISTON, FLOATING
-
233604-773 SLEEVE, WEARSLEEVE, WEAR
-
242603-014 NUT, ADJUSTERNUT, ADJUSTER
-
253604-779 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
263604-757 BODY, SHOCKBODY, SHOCK
-
271621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
282704-257 END CAP, SHOCK - ASSEMBLY (INC. 29-30)END CAP, SHOCK - ASSEMBLY (INC. 29-30)
-
293604-751 ...VALVE, PRESSURE (INC. 30)...VALVE, PRESSURE (INC. 30)
-
303604-733 ......O-RING, VALVE......O-RING, VALVE
-
313604-750 SCREW, MACHINESCREW, MACHINE
-
325639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
