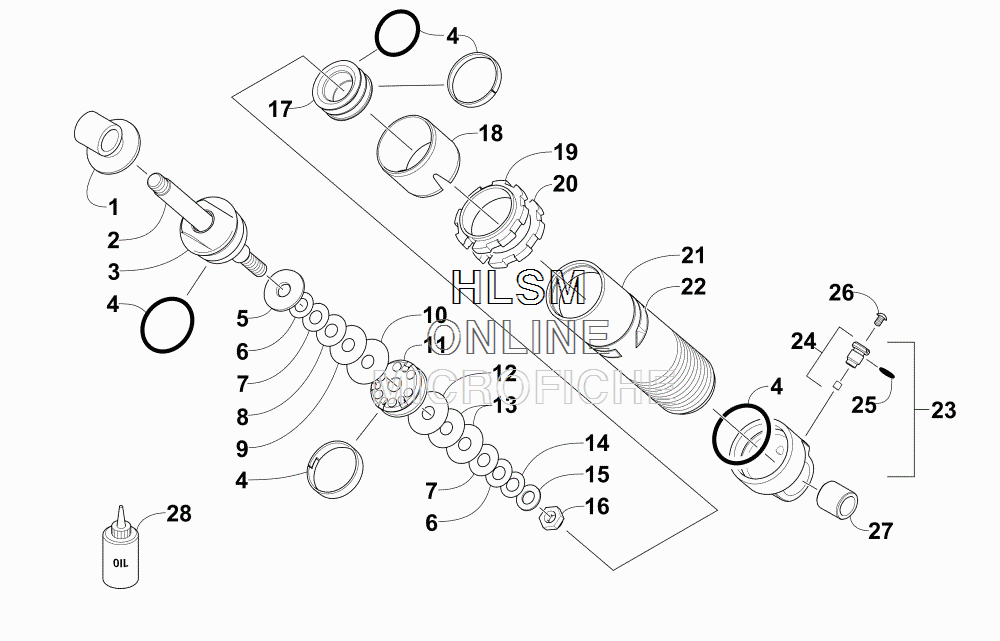

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat PANTERA 3000 INTERNATIONAL BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-691 SHOCK ABSORBERSHOCK ABSORBER
-
13604-797 EYELET, SHOCKEYELET, SHOCK
-
23604-831 ROD, SHOCKROD, SHOCK
-
34604-125 BEARING, ENDCAP - ASSEMBLYBEARING, ENDCAP - ASSEMBLY
-
44604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
53604-789 WASHER, TOP OUTWASHER, TOP OUT
-
63603-096 VALVE, 0.700 X 0.012 IN.VALVE, 0.700 X 0.012 IN.
-
73603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
83603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
93603-124 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
103603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
113604-790 PISTON, 37 BORE-2.35 ORIFICEPISTON, 37 BORE-2.35 ORIFICE
-
123603-174 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
133603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
143603-095 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
153604-775 WASHER, BACKUPWASHER, BACKUP
-
163604-739 NUTNUT
-
173604-772 PISTON, FLOATINGPISTON, FLOATING
-
183604-773 SLEEVE, WEARSLEEVE, WEAR
-
192603-014 NUT, ADJUSTERNUT, ADJUSTER
-
203604-779 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
213604-830 BODY, SHOCKBODY, SHOCK
-
221621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
232704-257 END CAP, SHOCK - ASSEMBLY (INC. 24-25)END CAP, SHOCK - ASSEMBLY (INC. 24-25)
-
243604-751 ...VALVE, PRESSURE (INC. 25)...VALVE, PRESSURE (INC. 25)
-
253604-733 ......O-RING, VALVE......O-RING, VALVE
-
263604-750 SCREW, MACHINESCREW, MACHINE
-
273604-906 BEARINGBEARING
-
285639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
