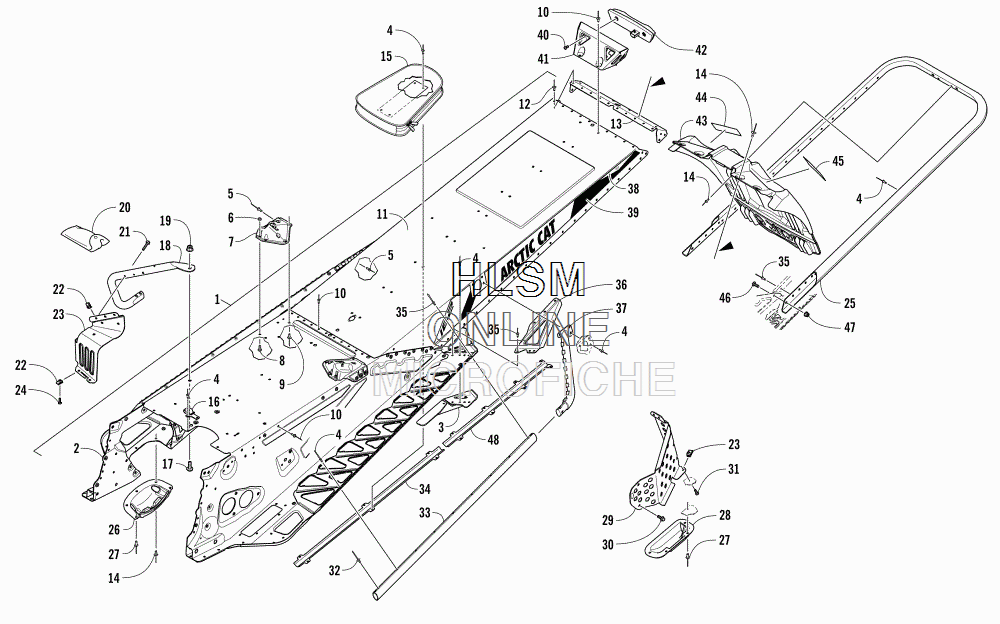

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 SNO PRO ES 162 ORANGE - 2017 года выпуска`
-
№АртикулНазвание
-
-2707-013 COMPLETE CHASSIS ASSEMBLY ORANGECOMPLETE CHASSIS ASSEMBLY ORANGE
-
12707-356 TUNNEL ASSEMBLY - ORANGE (INC. 2-13)TUNNEL ASSEMBLY - ORANGE (INC. 2-13)
-
22707-333 TUNNEL, FRONT - ASSEMBLY - ORANGE (INC. 3-4)TUNNEL, FRONT - ASSEMBLY - ORANGE (INC. 3-4)
-
32707-324 BRACKET, MOUNTING - SUSPENSION - RIGHT - ORANGEBRACKET, MOUNTING - SUSPENSION - RIGHT - ORANGE
-
32707-325 BRACKET, MOUNTING - SUSPENSION - LEFT - ORANGEBRACKET, MOUNTING - SUSPENSION - LEFT - ORANGE
-
48060-686 RIVET - ZINCRIVET - ZINC
-
51623-206 RIVETRIVET
-
68422-502 NUTNUT
-
72707-326 BRACKET, MOUNTING - REAR SPAR - RIGHT - ORANGEBRACKET, MOUNTING - REAR SPAR - RIGHT - ORANGE
-
72707-327 BRACKET, MOUNTING - REAR SPAR - LEFT - ORANGEBRACKET, MOUNTING - REAR SPAR - LEFT - ORANGE
-
88476-512 SCREW, MACHINESCREW, MACHINE
-
91623-257 RIVETRIVET
-
108060-682 RIVET - ZINCRIVET - ZINC
-
112707-354 TUNNEL, REAR - ORANGETUNNEL, REAR - ORANGE
-
128060-482 RIVET - ZINCRIVET - ZINC
-
132707-331 END CAP, TUNNEL - ORANGEEND CAP, TUNNEL - ORANGE
-
148061-706 RIVETRIVET
-
156606-615 BAG, BELTBAG, BELT
-
160645-709 CLIP, ROUTINGCLIP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
181707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
198427-802 NUTNUT
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
232707-014 FOOTREST - RIGHT ORANGEFOOTREST - RIGHT ORANGE
-
232707-015 FOOTREST - LEFT ORANGEFOOTREST - LEFT ORANGE
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
252707-596 BUMPER, REAR - 162" - PAINTED BLACKBUMPER, REAR - 162" - PAINTED BLACK
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVET - BLACKRIVET - BLACK
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-043 SHIELD, BRAKE DISC ORANGESHIELD, BRAKE DISC ORANGE
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
332707-330 ROLL, TUNNEL - ORANGEROLL, TUNNEL - ORANGE
-
340630-307 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
351623-241 RIVETRIVET
-
362707-322 GUSSET, RUNNING BOARD - RIGHT - ORANGEGUSSET, RUNNING BOARD - RIGHT - ORANGE
-
362707-323 GUSSET, RUNNING BOARD - LEFT - ORANGEGUSSET, RUNNING BOARD - LEFT - ORANGE
-
372707-328 GUSSET, TUNNEL ROLL - RIGHT - ORANGEGUSSET, TUNNEL ROLL - RIGHT - ORANGE
-
372707-329 GUSSET, TUNNEL ROLL - LEFT - ORANGEGUSSET, TUNNEL ROLL - LEFT - ORANGE
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
393621-282 DECAL, TUNNEL - "162" - RIGHTDECAL, TUNNEL - "162" - RIGHT
-
393621-283 DECAL, TUNNEL - "162" - LEFTDECAL, TUNNEL - "162" - LEFT
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410730-231 BRACKET, MOUNTING - TAILLIGHT - ORANGEBRACKET, MOUNTING - TAILLIGHT - ORANGE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
478427-602 NUT, LOCKNUT, LOCK
-
480630-280 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
