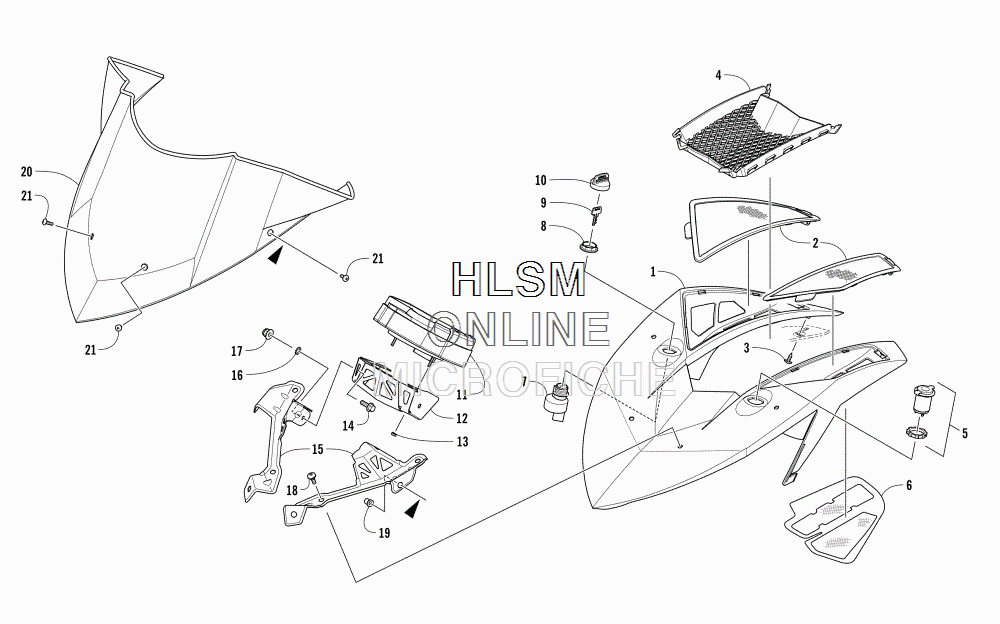

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 8000 SNO PRO 153 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-235 POD, INSTRUMENT - WHITE
    POD, INSTRUMENT - WHITE
  • 2
    0608-736 VENT, INTAKE - RIGHT
    VENT, INTAKE - RIGHT
  • 2
    0608-737 VENT, INTAKE - LEFT
    VENT, INTAKE - LEFT
  • 3
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    6606-576 VENT, INTAKE
    VENT, INTAKE
  • 5
    0641-897 OUTLET, ACCESSORY (12V)
    OUTLET, ACCESSORY (12V)
  • 6
    0608-688 SCREEN, INTAKE - RIGHT
    SCREEN, INTAKE - RIGHT
  • 6
    0608-689 SCREEN, INTAKE - LEFT
    SCREEN, INTAKE - LEFT
  • 7
    0609-910 SWITCH, IGNITION (INC. 8-10)
    SWITCH, IGNITION (INC. 8-10)
  • 8
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 9
    0430-042 ...KEY, IGNITION - Y SERIES (LEFT BANK)
    ...KEY, IGNITION - Y SERIES (LEFT BANK)
  • 9
    0430-043 ...KEY, IGNITION - Z SERIES (RIGHT BANK)
    ...KEY, IGNITION - Z SERIES (RIGHT BANK)
  • 10
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 11
    0620-391 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 12
    5706-651 BRACKET, SPEEDOMETER GAUGE - CENTER - WHITE
    BRACKET, SPEEDOMETER GAUGE - CENTER - WHITE
  • 13
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 14
    8410-616 SCREW, CAP
    SCREW, CAP
  • 15
    5706-652 BRACKET, SPEEDOMETER GAUGE - RIGHT - WHITE
    BRACKET, SPEEDOMETER GAUGE - RIGHT - WHITE
  • 15
    5706-653 BRACKET, SPEEDOMETER GAUGE - LEFT - WHITE
    BRACKET, SPEEDOMETER GAUGE - LEFT - WHITE
  • 16
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 19
    1623-764 NUT, EXPANSION
    NUT, EXPANSION
  • 20
    6606-647 WINDSHIELD - LOW - GREEN
    WINDSHIELD - LOW - GREEN
  • 21
    8477-516 SCREW, MACHINE
    SCREW, MACHINE
