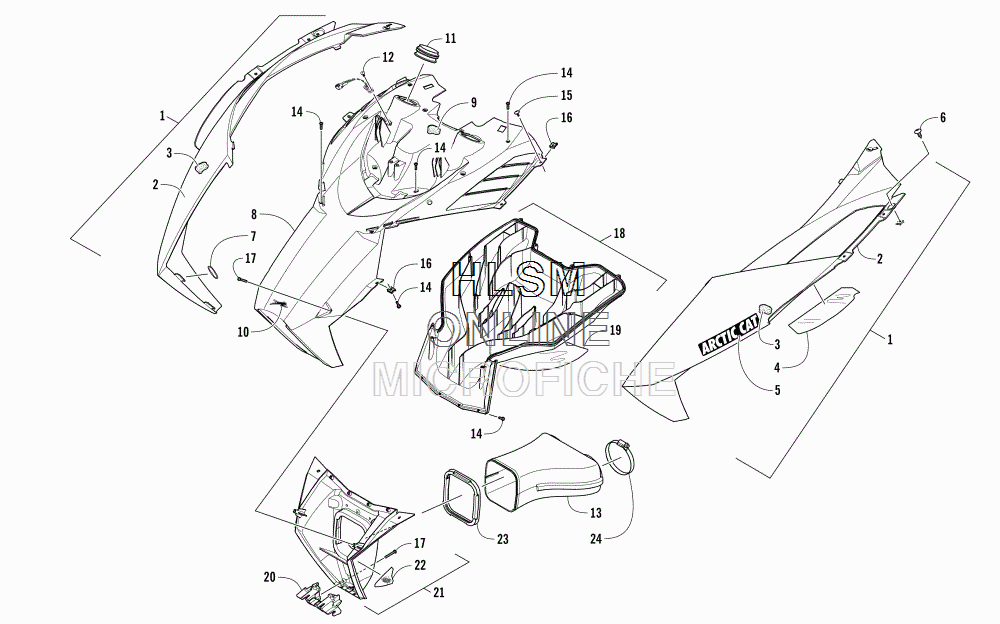

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 8000 SE ES 153 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-288 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3, AND ONE NO. 5)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-3, AND ONE NO. 5)
  • 1
    5718-287 HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
  • 2
    3718-588 ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
    ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
  • 2
    3718-589 ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
    ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
  • 3
    0617-646 ......FOAM, HOOD - RIGHT
    ......FOAM, HOOD - RIGHT
  • 3
    0617-647 ......FOAM, HOOD - LEFT
    ......FOAM, HOOD - LEFT
  • 4
    6606-407 ......FOIL, PROTECTIVE - HOOD - LEFT
    ......FOIL, PROTECTIVE - HOOD - LEFT
  • 5
    3621-224 ...DECAL, HOOD - FRONT - "ARCTIC CAT"
    ...DECAL, HOOD - FRONT - "ARCTIC CAT"
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    1623-960 O-RING
    O-RING
  • 8
    5706-356 PLENUM, INTAKE - UPPER (INC. 9)
    PLENUM, INTAKE - UPPER (INC. 9)
  • 9
    0617-648 ...FOAM, INTAKE
    ...FOAM, INTAKE
  • 10
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 11
    6606-386 SEAL
    SEAL
  • 12
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    2670-328 BOOT
    BOOT
  • 14
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    1623-939 NUT, U
    NUT, U
  • 17
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    6706-151 PLENUM, INTAKE - LOWER REAR (INC. 19)
    PLENUM, INTAKE - LOWER REAR (INC. 19)
  • 19
    7606-307 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 20
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 21
    5706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
    PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
  • 22
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 23
    0617-624 ADAPTER, BOOT
    ADAPTER, BOOT
  • 24
    0423-018 CLAMP, HOSE
    CLAMP, HOSE
