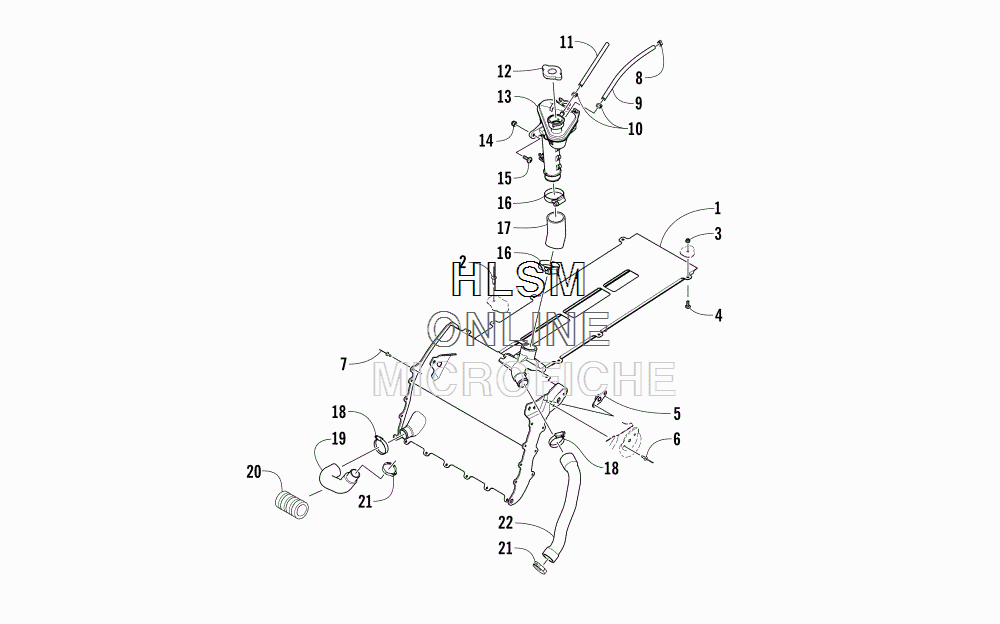

COOLING ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT ES 162 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
10713-110 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVETRIVET
-
38422-502 NUTNUT
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVETRIVET
-
78060-706 RIVETRIVET
-
81623-619 CLAMP, HOSECLAMP, HOSE
-
90610-538 HOSE - 25 FTHOSE - 25 FT
-
101623-655 CLAMP, HOSECLAMP, HOSE
-
110610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
110610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
122606-284 CAPCAP
-
130613-135 TANK, COOLANTTANK, COOLANT
-
148422-602 NUTNUT
-
158476-625 SCREW, CAPSCREW, CAP
-
160423-317 CLAMPCLAMP
-
170610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
182623-088 CLAMP, HOSECLAMP, HOSE
-
190610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
200619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
211623-656 CLAMP, HOSECLAMP, HOSE
-
220613-191 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
