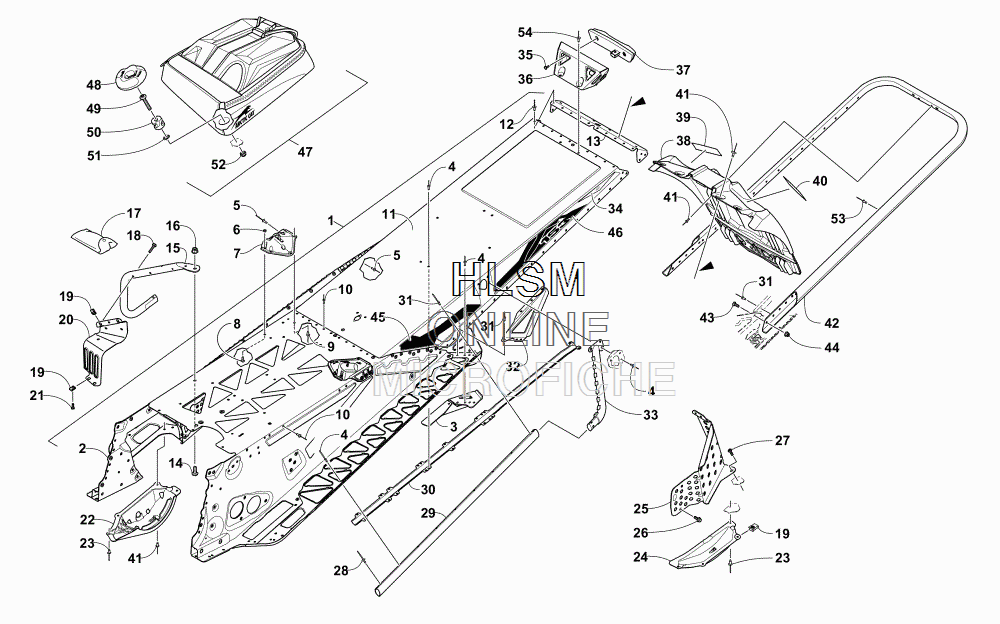

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT ES 153 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
–2707-771 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
12707-995 TUNNEL ASSEMBLY - GREEN (INC. 2-13)TUNNEL ASSEMBLY - GREEN (INC. 2-13)
-
22707-993 ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
-
32707-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
32707-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
48060-686 ......RIVET ZINC......RIVET ZINC
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
72707-124 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
72707-125 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET ZINC...RIVET ZINC
-
112707-984 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
128060-482 ...RIVET...RIVET
-
132707-315 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
152707-822 SUPPORT, FOOTREST - RIGHT - GREENSUPPORT, FOOTREST - RIGHT - GREEN
-
152707-823 SUPPORT, FOOTREST - LEFT - GREENSUPPORT, FOOTREST - LEFT - GREEN
-
168427-802 NUTNUT
-
170744-090 KIT, TOOLKIT, TOOL
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
202707-820 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
202707-821 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221607-646 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
241607-645 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
252707-660 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
268408-613 SCREW, CAPSCREW, CAP
-
278470-520 SCREW, MACHINESCREW, MACHINE
-
281623-130 RIVETRIVET
-
292707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
300630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311623-241 RIVETRIVET
-
322707-336 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
322707-337 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
332707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
332707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
340621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
358470-510 SCREW, MACHINESCREW, MACHINE
-
360730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
370609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
386606-394 SNOWFLAPSNOWFLAP
-
395611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
405611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
418061-706 RIVETRIVET
-
422707-590 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
438476-620 SCREW, MACHINESCREW, MACHINE
-
448427-602 NUT, LOCKNUT, LOCK
-
453621-556 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
453621-557 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
463621-550 DECAL, TUNNEL - "153" - RIGHT - GREENDECAL, TUNNEL - "153" - RIGHT - GREEN
-
463621-551 DECAL, TUNNEL - "153" - LEFT - GREENDECAL, TUNNEL - "153" - LEFT - GREEN
-
477639-434 BAG, SHOVEL PACK (INC. 48-52)BAG, SHOVEL PACK (INC. 48-52)
-
482623-204 ...RING, CAMLOCK...RING, CAMLOCK
-
498468-525 ...SCREW, MACHINE...SCREW, MACHINE
-
502623-203 ...SPOOL, CAMLOCK...SPOOL, CAMLOCK
-
510423-377 ...WASHER, EXTERNAL TOOTH LOCK...WASHER, EXTERNAL TOOTH LOCK
-
528431-503 ...NUT, LOCK...NUT, LOCK
-
538060-706 RIVET BLACKRIVET BLACK
-
548060-702 RIVETRIVET
