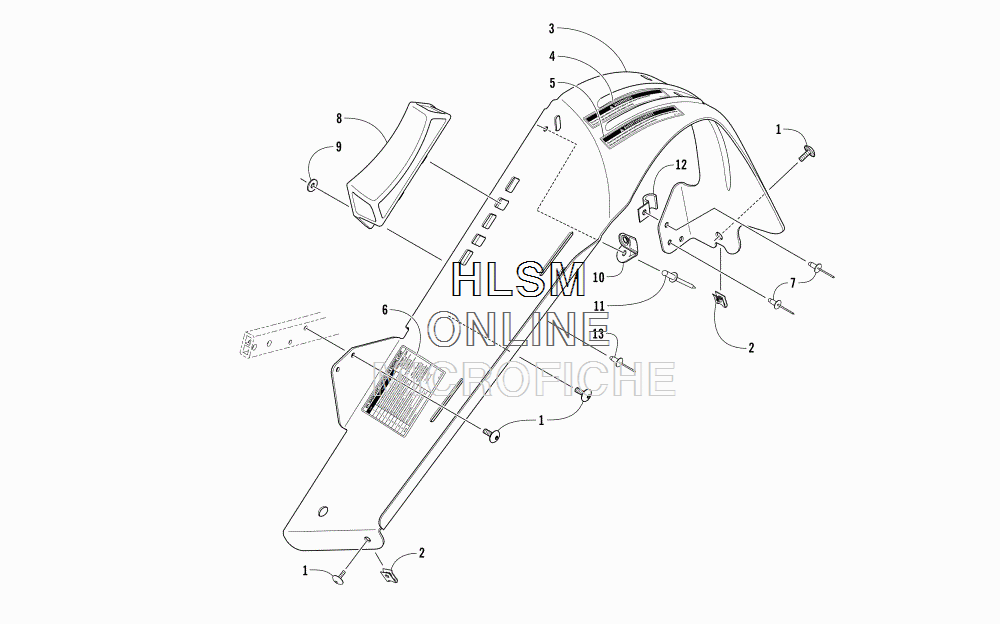

BELT GUARD ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT 153 GREEN EARLY BUILD - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 3
    2707-278 GUARD, BELT (INC. 4-5)
    GUARD, BELT (INC. 4-5)
  • 4
    9611-690 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 5
    9611-691 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 6
    9611-743 DECAL, EFI DIAGNOSTIC CODES
    DECAL, EFI DIAGNOSTIC CODES
  • 7
    8060-688 RIVET
    RIVET
  • 8
    3612-016 PAD, MOUNTING
    PAD, MOUNTING
  • 9
    0123-802 WASHER
    WASHER
  • 10
    3612-037 TAB, RESONATOR MOUNT
    TAB, RESONATOR MOUNT
  • 11
    1623-130 RIVET
    RIVET
  • 12
    1623-786 CLAMP, WIRE
    CLAMP, WIRE
  • 13
    8060-686 RIVET
    RIVET
