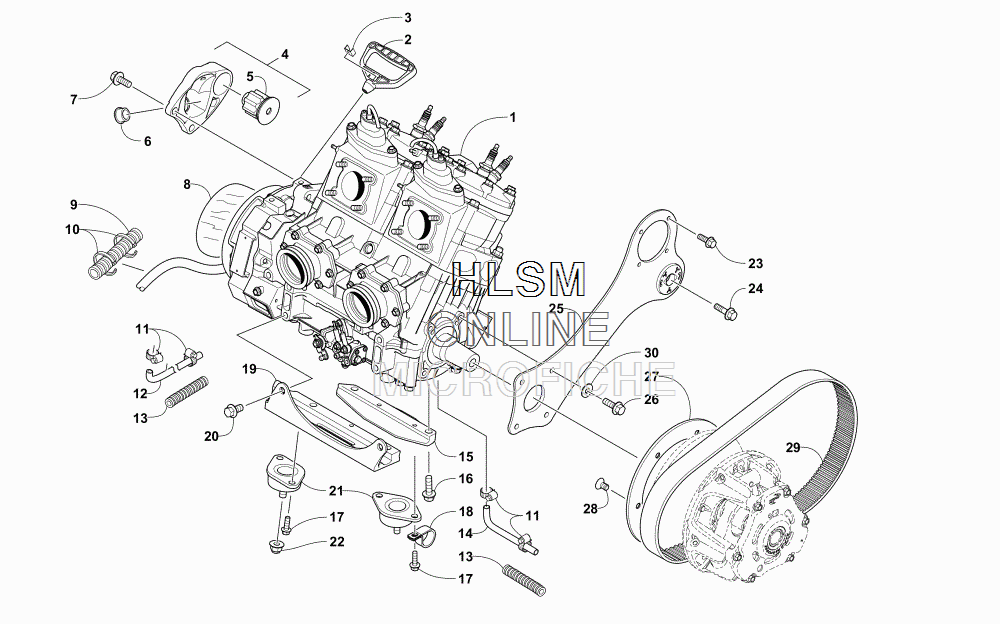

ENGINE AND RELATED PARTS для Arctic Cat M 8000 LTD 162 (3.0) BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 - W/O EFI COMPONENTSENGINE, AB80L4 - W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)
-
50608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
60608-633 ...BUSHING...BUSHING
-
78409-026 SCREW, CAPSCREW, CAP
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91619-131 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-923 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
130619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
140610-878 HOSE, COOLANTHOSE, COOLANT
-
150708-602 PLATE, ENGINE MOUNTING - LOWER REARPLATE, ENGINE MOUNTING - LOWER REAR
-
168409-036 SCREW, CAPSCREW, CAP
-
171623-944 SCREW, SHOULDERSCREW, SHOULDER
-
181623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
190708-600 PLATE, ENGINE MOUNTING - LOWER FRONTPLATE, ENGINE MOUNTING - LOWER FRONT
-
208409-021 SCREW, CAPSCREW, CAP
-
210708-658 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
228427-002 NUT, LOCKNUT, LOCK
-
238408-621 SCREW, CAPSCREW, CAP
-
248408-826 SCREW, CAPSCREW, CAP
-
250708-675 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
268409-821 SCREW, CAPSCREW, CAP
-
270645-410 RING, DAMPERRING, DAMPER
-
281623-821 SCREW, MACHINESCREW, MACHINE
-
290627-084 BELT, DRIVEBELT, DRIVE
-
308050-252 WASHERWASHER
