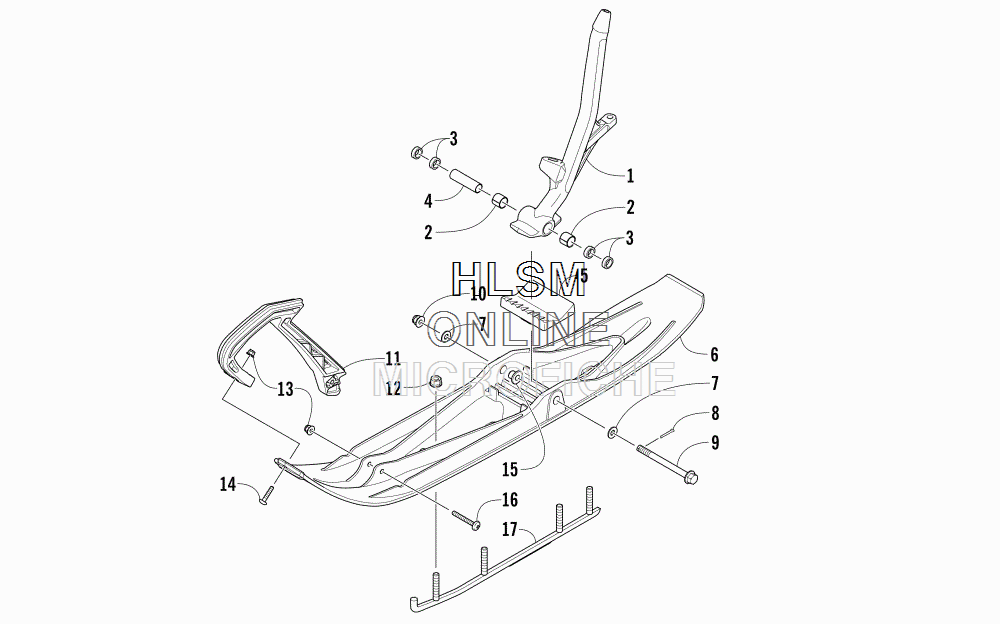

SKI AND SPINDLE ASSEMBLY для Arctic Cat M 8000 LTD 153 ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-430 SPINDLE, STEERING - RIGHT - ORANGE (INC. TWO NO. 2)
    SPINDLE, STEERING - RIGHT - ORANGE (INC. TWO NO. 2)
  • 1
    3703-431 SPINDLE, STEERING - LEFT - ORANGE (INC. TWO NO. 2)
    SPINDLE, STEERING - LEFT - ORANGE (INC. TWO NO. 2)
  • 2
    0603-158 ...BEARING
    ...BEARING
  • 3
    3603-321 AXLE, SPINDLE
    AXLE, SPINDLE
  • 4
    2603-208 SPACER
    SPACER
  • 5
    3603-305 DAMPER, SKI
    DAMPER, SKI
  • 6
    3603-518 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 7
    1623-801 WASHER
    WASHER
  • 8
    0123-458 PIN, COTTER
    PIN, COTTER
  • 9
    2623-030 SCREW, CAP
    SCREW, CAP
  • 10
    0423-744 NUT, LOCK
    NUT, LOCK
  • 11
    2603-952 HANDLE, PLASTIC - ORANGE
    HANDLE, PLASTIC - ORANGE
  • 12
    8047-486 NUT, LOCK
    NUT, LOCK
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    8476-625 SCREW, CAP
    SCREW, CAP
  • 15
    2603-746 INSERT
    INSERT
  • 16
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0703-871 WEARBAR
    WEARBAR
