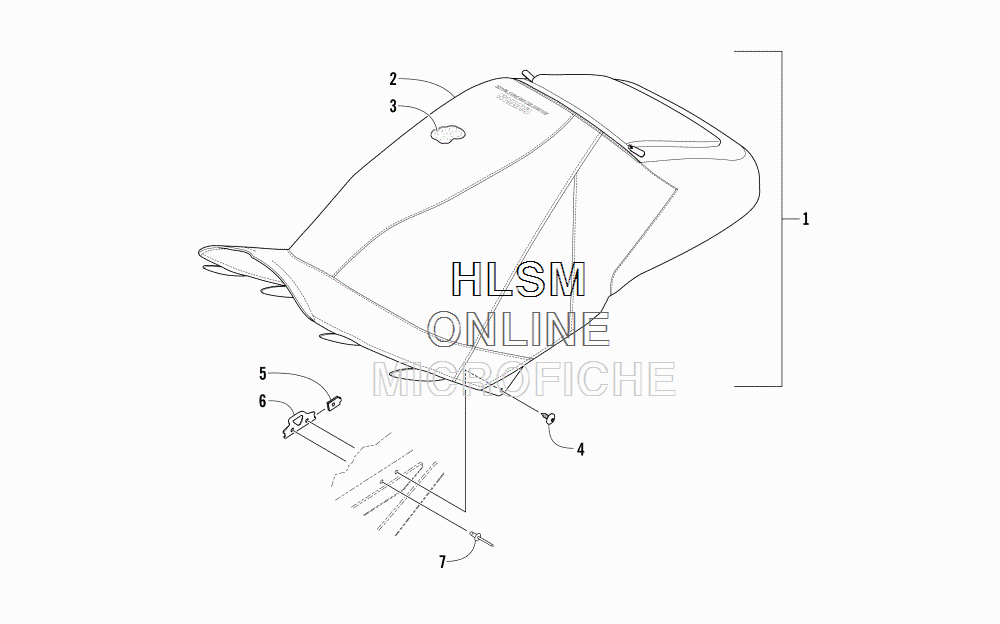

SEAT ASSEMBLY для Arctic Cat M 8000 LTD 153 ORANGE INTERNATIONAL - 2017 года выпуска`
-
№АртикулНазвание
-
16706-196 COMPLETE SEAT ASSEMBLY - CAMO (INC. 2-3)COMPLETE SEAT ASSEMBLY - CAMO (INC. 2-3)
-
26706-195 ...COVER, SEAT - CAMO...COVER, SEAT - CAMO
-
30717-213 ...FOAM, SEAT...FOAM, SEAT
-
42623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
51623-052 CLIP, U-NUTCLIP, U-NUT
-
66606-704 PLATE, RETAININGPLATE, RETAINING
-
78060-682 RIVETRIVET
