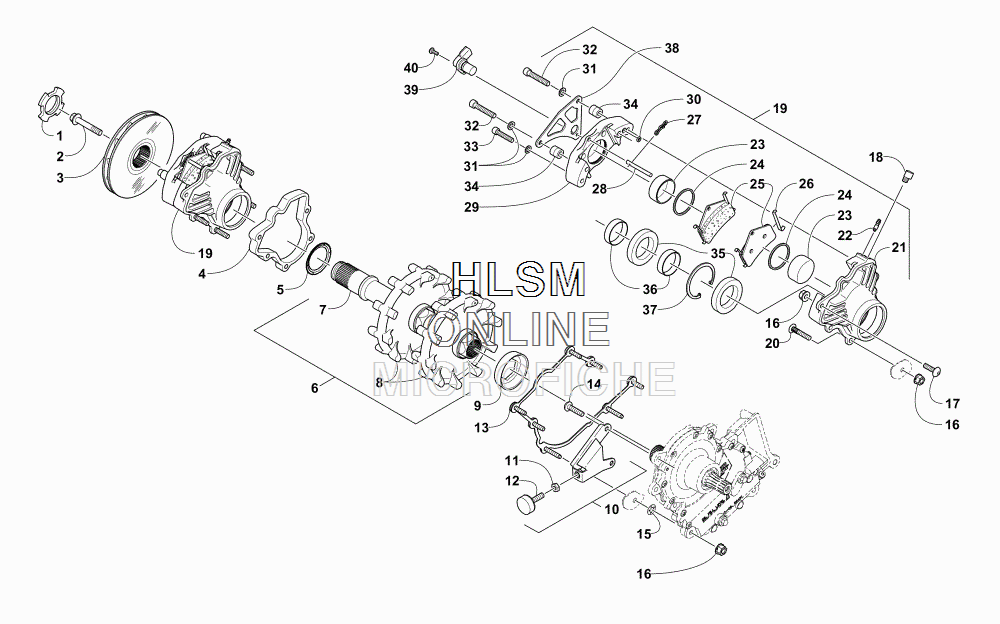

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat LYNX 2000 LT BLACK - 2017 года выпуска`

№

Артикул

Название
1

1602-957 NUT, RETAINING

NUT, RETAINING

1 870 ₽
2

1623-461 SCREW, CAP

SCREW, CAP

3 110 ₽
3

1602-656 DISC, BRAKE

DISC, BRAKE

39 930 ₽
4

1602-480 SPACER, BRAKE CALIPER

SPACER, BRAKE CALIPER

7 900 ₽
5

2602-076 SHIELD, BEARING

SHIELD, BEARING

1 870 ₽
6

0728-181 TRACK, DRIVE, ASSEMBLY (ACT) (INC. 7-8)

TRACK, DRIVE, ASSEMBLY (ACT) (INC. 7-8)

68 220 ₽
7

0702-880 ...SHAFT, DRIVE W/RETAINER - ASSEMBLY

...SHAFT, DRIVE W/RETAINER - ASSEMBLY

62 190 ₽
8

1602-783 ...SPROCKET, DRIVE - 10T - 45 MM HEX

...SPROCKET, DRIVE - 10T - 45 MM HEX

9 980 ₽
9

1602-984 SEAL

SEAL

2 070 ₽
10

0708-540 BRACKET, TORQUE BUMPER - ASSEMBLY (INC. 11-12)

BRACKET, TORQUE BUMPER - ASSEMBLY (INC. 11-12)

6 230 ₽
11

0123-191 ...NUT, JAM

...NUT, JAM

150 ₽
12

0608-784 ...BUMPER, TORQUE

...BUMPER, TORQUE

3 110 ₽
13

1702-060 PLATE, MOUNTING - REVERSE ACT DRIVE - PAINTED BLACK

PLATE, MOUNTING - REVERSE ACT DRIVE - PAINTED BLACK

8 110 ₽
14

8476-830 SCREW, CAP

SCREW, CAP

1 450 ₽
15

1623-355 NUT, PUSH

NUT, PUSH

380 ₽
16

8427-802 NUT

NUT

90 ₽
17

8477-845 SCREW, MACHINE

SCREW, MACHINE

520 ₽
18

1602-978 FITTING, INLET

FITTING, INLET

3 320 ₽
19

1702-018 CALIPER, BRAKE - METRIC - S/P - ASSEMBLY (INC. 20-37)

CALIPER, BRAKE - METRIC - S/P - ASSEMBLY (INC. 20-37)

111 480 ₽
20

1623-713 ...BOLT, CARRIAGE - RIBBED

...BOLT, CARRIAGE - RIBBED

3 740 ₽
22

1602-458 ...FITTING, BLEED

...FITTING, BLEED

650 ₽
23

1602-461 ...PISTON

...PISTON

12 890 ₽
24

1602-669 ...O-RING

...O-RING

3 110 ₽
25

0702-563 ...KIT, BRAKE PAD (INC. 26-27)

...KIT, BRAKE PAD (INC. 26-27)

17 470 ₽
26

1602-466 ......CLIP, ANTI-RATTLE

......CLIP, ANTI-RATTLE

1 450 ₽
27

1602-467 ......CLIP, HAIRPIN

......CLIP, HAIRPIN

920 ₽
28

1602-464 ...PIN, RETAINING - BRAKE PAD

...PIN, RETAINING - BRAKE PAD

920 ₽
30

0602-729 ...O-RING, HOUSING

...O-RING, HOUSING

860 ₽
31

0402-165 ...WASHER

...WASHER

460 ₽
32

1602-670 ...SCREW, CAP

...SCREW, CAP

480 ₽
33

1602-671 ...SCREW, CAP

...SCREW, CAP

770 ₽
34

2602-132 ...SPACER, SPEEDOMETER BRACKET

...SPACER, SPEEDOMETER BRACKET

2 490 ₽
35

2602-131 ...BEARING, 45 MM X 68 MM X 12 MM

...BEARING, 45 MM X 68 MM X 12 MM

8 520 ₽
36

1602-463 ...SLEEVE, DRIVESHAFT

...SLEEVE, DRIVESHAFT

4 780 ₽
37

1602-456 ...RING, RETAINING

...RING, RETAINING

4 150 ₽
38

6606-167 PLATE, MOUNTING - SPEEDOMETER SENSOR

PLATE, MOUNTING - SPEEDOMETER SENSOR

1 870 ₽
39

0430-091 SENSOR, SPEEDOMETER

SENSOR, SPEEDOMETER

7 270 ₽
40

8468-617 SCREW, MACHINE

SCREW, MACHINE

190 ₽
