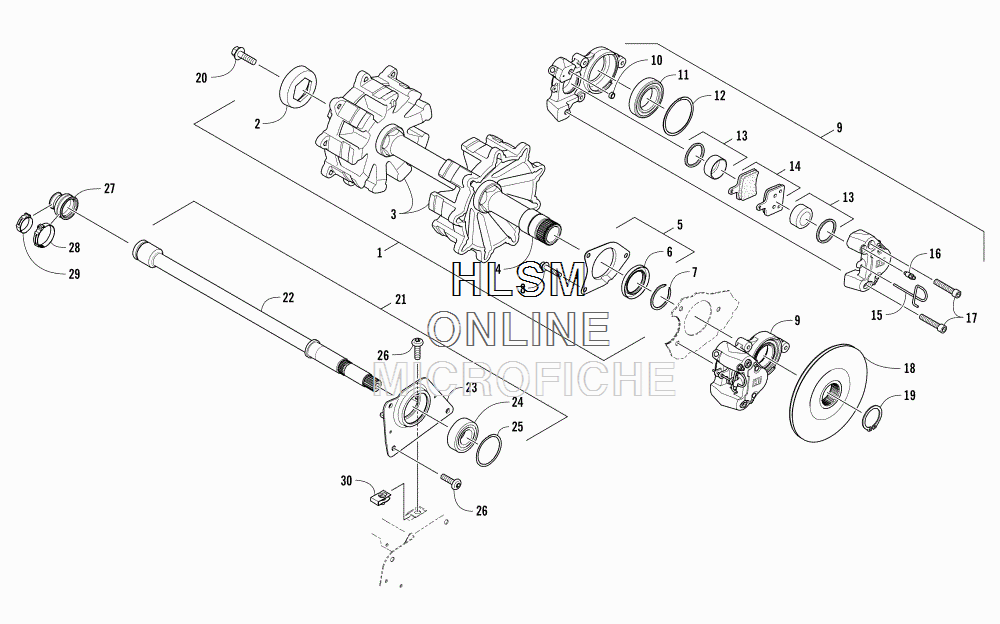

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat BEARCAT 7000 XT INTERNATIONAL ORANGE - 2017 года выпуска`
-
№АртикулНазвание
-
10728-240 TRACK, DRIVE - ASSEMBLY (INC. 2-7)TRACK, DRIVE - ASSEMBLY (INC. 2-7)
-
21602-984 ...SEAL...SEAL
-
32602-912 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
41702-380 ...DRIVESHAFT...DRIVESHAFT
-
51702-206 ...PLATE, RETAINING - SEAL (INC. 6)...PLATE, RETAINING - SEAL (INC. 6)
-
61602-344 ......SEAL......SEAL
-
72602-233 ...RING, RETAINING...RING, RETAINING
-
88408-831 SCREW, CAPSCREW, CAP
-
92602-486 CALIPER, BRAKE - ASSEMBLY (INC. 10-17)CALIPER, BRAKE - ASSEMBLY (INC. 10-17)
-
102602-411 ...SEAL...SEAL
-
112602-198 ...BEARING...BEARING
-
122602-280 ...RING, RETAINING...RING, RETAINING
-
132602-410 ...PISTON SET...PISTON SET
-
141702-245 ...PAD, BRAKE - SET (INC. 15)...PAD, BRAKE - SET (INC. 15)
-
152602-409 ......PIN, RETAINING......PIN, RETAINING
-
162602-408 ...FITTING, BLEED...FITTING, BLEED
-
172602-412 ...SCREW, CAP...SCREW, CAP
-
182602-249 DISC, BRAKEDISC, BRAKE
-
192602-629 RING, RETAININGRING, RETAINING
-
208413-041 SCREW, CAPSCREW, CAP
-
211702-391 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25,27-29)SHAFT, DRIVEN - ASSEMBLY (INC. 22-25,27-29)
-
222602-781 ...SHAFT, DRIVEN...SHAFT, DRIVEN
-
232602-657 ...BEARING SUPPORT, DRIVEN SHAFT...BEARING SUPPORT, DRIVEN SHAFT
-
242602-524 ...BEARING...BEARING
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
268476-826 SCREW, MACHINESCREW, MACHINE
-
272602-361 BOOT, COUPLER - DRIVEN SHAFTBOOT, COUPLER - DRIVEN SHAFT
-
280423-393 CLAMPCLAMP
-
290423-411 CLAMPCLAMP
-
301623-640 CLIP, U-NUTCLIP, U-NUT
