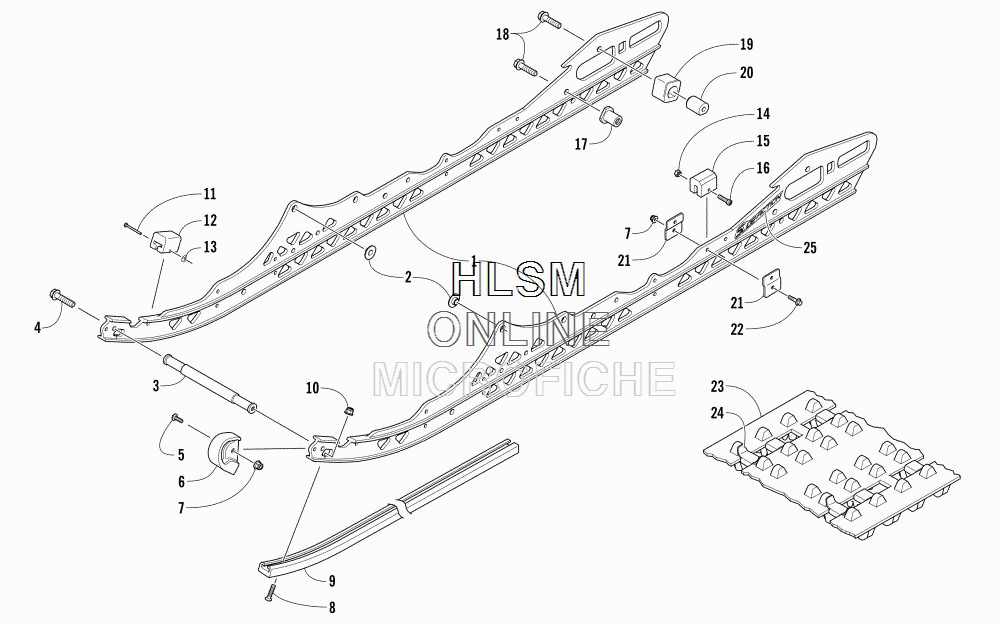

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat BEARCAT 3000 LT BLUE EARLY BUILD - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-629 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-685 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
33604-679 AXLEAXLE
-
48408-826 SCREW, CAPSCREW, CAP
-
58476-630 SCREW, MACHINESCREW, MACHINE
-
64604-093 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78427-602 NUT, LOCKNUT, LOCK
-
80123-859 SCREW, MACHINESCREW, MACHINE
-
93604-801 WEARSTRIP - BLACKWEARSTRIP - BLACK
-
108047-366 NUT, LOCKNUT, LOCK
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
148427-502 NUT, LOCKNUT, LOCK
-
151604-429 PAD, SHOCKPAD, SHOCK
-
168470-540 SCREW, MACHINESCREW, MACHINE
-
173604-979 AXLEAXLE
-
188413-031 SCREW, CAPSCREW, CAP
-
192604-545 BLOCK, COUPLERBLOCK, COUPLER
-
203604-291 BUSHING, COUPLERBUSHING, COUPLER
-
210608-770 BRACKET, MOUNTING - SUSPENSIONBRACKET, MOUNTING - SUSPENSION
-
228408-625 SCREW, CAPSCREW, CAP
-
232602-933 TRACK ASSEMBLY (INC. 24)TRACK ASSEMBLY (INC. 24)
-
242602-386 ...CLIP, GUIDE...CLIP, GUIDE
-
250621-907 DECAL, "SLIDE ACTION"DECAL, "SLIDE ACTION"
