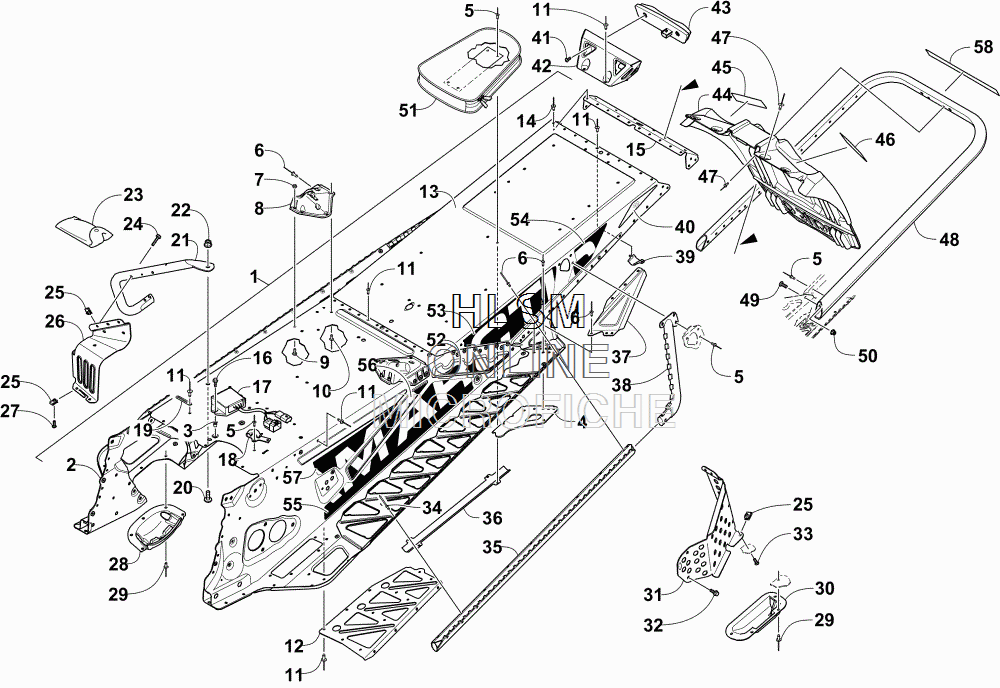

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 9000 RR 129 GREEN [S2016ZRNTRUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2707-522 COMPLETE CHASSIS ASSEMBLY - BLACK
    COMPLETE CHASSIS ASSEMBLY - BLACK
  • 1
    2707-178 TUNNEL ASSEMBLY - BLACK (INC. 2-11 AND 13-15)
    TUNNEL ASSEMBLY - BLACK (INC. 2-11 AND 13-15)
  • 2
    2707-177 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-5)
    ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-5)
  • 3
    1623-797 ......INSERT
    ......INSERT
  • 4
    1707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
  • 4
    1707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
    ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
  • 5
    8060-706 ......RIVET - BLACK
    ......RIVET - BLACK
  • 6
    1623-241 ...RIVET
    ...RIVET
  • 7
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 8
    1707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
  • 8
    1707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
  • 9
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 10
    1623-257 ...RIVET
    ...RIVET
  • 11
    8060-702 ...RIVET - BLACK
    ...RIVET - BLACK
  • 12
    2707-172 ...SUPPORT, RUNNING BOARD - RIGHT - BLACK
    ...SUPPORT, RUNNING BOARD - RIGHT - BLACK
  • 12
    2707-173 ...SUPPORT, RUNNING BOARD - LEFT - BLACK
    ...SUPPORT, RUNNING BOARD - LEFT - BLACK
  • 13
    1707-835 ...TUNNEL, REAR - BLACK
    ...TUNNEL, REAR - BLACK
  • 14
    8060-484 ...RIVET
    ...RIVET
  • 15
    1707-725 ...END CAP, TUNNEL - BLACK
    ...END CAP, TUNNEL - BLACK
  • 16
    8408-516 SCREW, CAP
    SCREW, CAP
  • 17
    0630-288 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 18
    0645-709 CLIP, ROUTING
    CLIP, ROUTING
  • 19
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 20
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 21
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 22
    8427-802 NUT, LOCK
    NUT, LOCK
  • 23
    0744-088 KIT, TOOL
    KIT, TOOL
  • 24
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    1707-556 FOOTREST - RIGHT - BLACK
    FOOTREST - RIGHT - BLACK
  • 26
    1707-557 FOOTREST - LEFT - BLACK
    FOOTREST - LEFT - BLACK
  • 27
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 29
    8061-708 RIVET
    RIVET
  • 30
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 31
    2707-044 SHIELD, BRAKE DISC - BLACK
    SHIELD, BRAKE DISC - BLACK
  • 32
    8408-613 SCREW, CAP
    SCREW, CAP
  • 33
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    1623-130 RIVET
    RIVET
  • 35
    2707-170 ROLL, TUNNEL - RIGHT - BLACK
    ROLL, TUNNEL - RIGHT - BLACK
  • 35
    2707-171 ROLL, TUNNEL - LEFT - BLACK
    ROLL, TUNNEL - LEFT - BLACK
  • 36
    0630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 37
    1707-698 GUSSET, RUNNING BOARD - RIGHT - BLACK
    GUSSET, RUNNING BOARD - RIGHT - BLACK
  • 37
    1707-699 GUSSET, RUNNING BOARD - LEFT - BLACK
    GUSSET, RUNNING BOARD - LEFT - BLACK
  • 38
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACK
    GUSSET, TUNNEL ROLL - RIGHT - BLACK
  • 38
    1707-701 GUSSET, TUNNEL ROLL - LEFT - BLACK
    GUSSET, TUNNEL ROLL - LEFT - BLACK
  • 39
    0630-292 PROTECTOR, HARNESS - TAILLIGHT
    PROTECTOR, HARNESS - TAILLIGHT
  • 40
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 41
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    0730-227 BRACKET, MOUNTING - TAILLIGHT - BLACK
    BRACKET, MOUNTING - TAILLIGHT - BLACK
  • 43
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 44
    6606-394 SNOWFLAP - BLACK
    SNOWFLAP - BLACK
  • 45
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 46
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 47
    8061-706 RIVET
    RIVET
  • 48
    2707-580 BUMPER, REAR - GREEN
    BUMPER, REAR - GREEN
  • 49
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 50
    8427-602 NUT, LOCK
    NUT, LOCK
  • 51
    6606-615 BAG, BELT
    BAG, BELT
  • 52
    2621-328 DECAL, TUNNEL - CENTER - RIGHT
    DECAL, TUNNEL - CENTER - RIGHT
  • 52
    2621-329 DECAL, TUNNEL - CENTER - LEFT
    DECAL, TUNNEL - CENTER - LEFT
  • 53
    2621-326 DECAL, TUNNEL - FORWARD REAR - RIGHT
    DECAL, TUNNEL - FORWARD REAR - RIGHT
  • 53
    2621-327 DECAL, TUNNEL - FORWARD REAR - LEFT
    DECAL, TUNNEL - FORWARD REAR - LEFT
  • 54
    2621-324 DECAL, TUNNEL - REAR - RIGHT
    DECAL, TUNNEL - REAR - RIGHT
  • 54
    2621-325 DECAL, TUNNEL - REAR - LEFT
    DECAL, TUNNEL - REAR - LEFT
  • 55
    2621-330 DECAL, TUNNEL - LOWER FRONT - RIGHT
    DECAL, TUNNEL - LOWER FRONT - RIGHT
  • 55
    2621-331 DECAL, TUNNEL - LOWER FRONT - LEFT
    DECAL, TUNNEL - LOWER FRONT - LEFT
  • 56
    2621-332 DECAL, TUNNEL - CENTER FRONT - RIGHT
    DECAL, TUNNEL - CENTER FRONT - RIGHT
  • 56
    2621-333 DECAL, TUNNEL - CENTER FRONT - LEFT
    DECAL, TUNNEL - CENTER FRONT - LEFT
  • 57
    2621-334 DECAL, TUNNEL - UPPER FRONT - RIGHT
    DECAL, TUNNEL - UPPER FRONT - RIGHT
  • 57
    2621-335 DECAL, TUNNEL - UPPER FRONT - LEFT
    DECAL, TUNNEL - UPPER FRONT - LEFT
  • 58
    2621-346 DECAL, REAR BUMPER
    DECAL, REAR BUMPER
