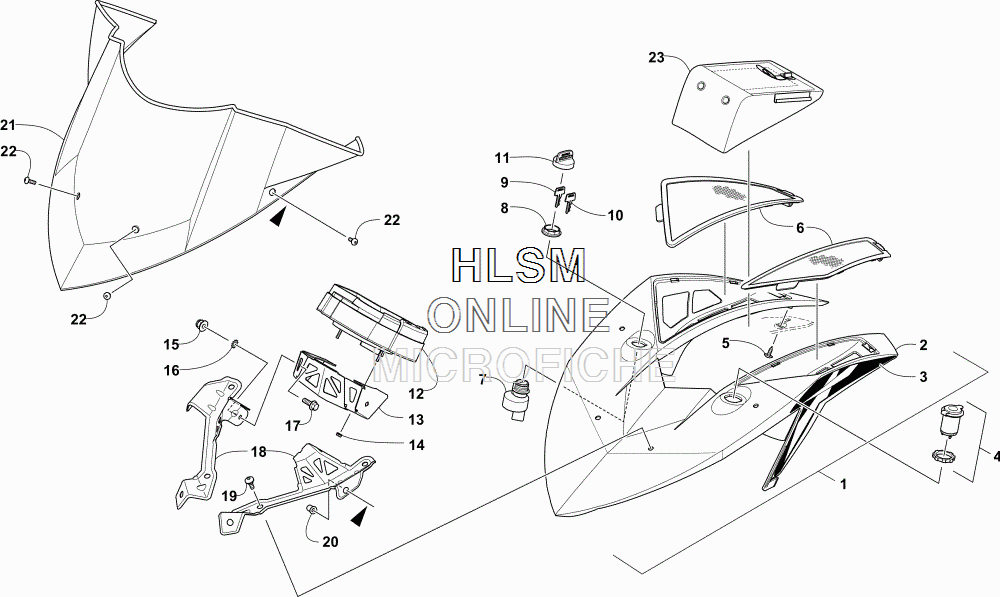

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 9000 LTD 137 GREEN [S2016ZXNLEUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-698 POD, INSTRUMENT W/DECALS- GREEN (INC. 2-3)
    POD, INSTRUMENT W/DECALS- GREEN (INC. 2-3)
  • 2
    6606-519 ...POD, INSTRUMENT - GREEN
    ...POD, INSTRUMENT - GREEN
  • 3
    2621-378 ...DECAL, POD - RIGHT - GREEN
    ...DECAL, POD - RIGHT - GREEN
  • 3
    2621-379 ...DECAL, POD - LEFT - GREEN
    ...DECAL, POD - LEFT - GREEN
  • 4
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 5
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    0608-736 VENT, INTAKE - RIGHT
    VENT, INTAKE - RIGHT
  • 6
    0608-737 VENT, INTAKE - LEFT
    VENT, INTAKE - LEFT
  • 7
    0609-911 SWITCH, IGNITION (INC. 8-11)
    SWITCH, IGNITION (INC. 8-11)
  • 8
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 9
    0430-042 ...KEY, IGNITION
    ...KEY, IGNITION
  • 10
    0430-043 ...KEY, IGNITION
    ...KEY, IGNITION
  • 11
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 12
    0620-390 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 13
    5706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
    BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
  • 14
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 15
    8427-602 NUT, LOCK
    NUT, LOCK
  • 16
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 17
    8410-616 SCREW, CAP
    SCREW, CAP
  • 18
    5706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
    BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
  • 18
    5706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
    BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
  • 19
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 20
    1623-764 NUT, EXPANSION
    NUT, EXPANSION
  • 21
    6606-624 WINDSHIELD - MID - GREEN
    WINDSHIELD - MID - GREEN
  • 22
    8477-516 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    6606-566 BAG, GOGGLE
    BAG, GOGGLE
