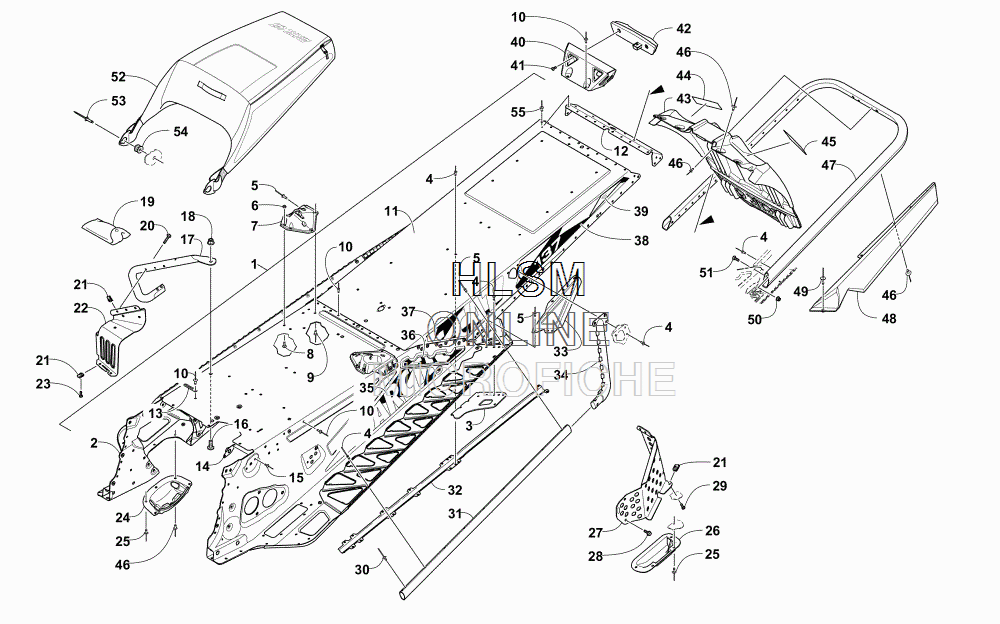

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 9000 LTD 137 BLACK [S2016ZXNLEUSB] - 2016 года выпуска`
-
№АртикулНазвание
-
-2707-240 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-239 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-238 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-244 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-245 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET - BLACK......RIVET - BLACK
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
111707-838 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
121707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
131623-984 ...CLAMP, ROUTING...CLAMP, ROUTING
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-708 RIVET - BLACKRIVET - BLACK
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
171707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
171707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
188427-802 NUT, LOCKNUT, LOCK
-
190744-088 KIT, TOOLKIT, TOOL
-
208468-535 SCREW, MACHINESCREW, MACHINE
-
211623-637 CLIP, U-NUTCLIP, U-NUT
-
221707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
221707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
238470-516 SCREW, MACHINESCREW, MACHINE
-
241607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
258061-708 RIVETRIVET
-
260607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
272707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
288408-613 SCREW, CAPSCREW, CAP
-
298470-520 SCREW, MACHINESCREW, MACHINE
-
301623-130 RIVETRIVET
-
311707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
320630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
331707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
341707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
341707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
382621-443 DECAL, TUNNEL - LEFT - BLACKDECAL, TUNNEL - LEFT - BLACK
-
352621-454 DECAL, TUNNEL - FRONT - RIGHT - BLACKDECAL, TUNNEL - FRONT - RIGHT - BLACK
-
352621-455 DECAL, TUNNEL - FRONT - LEFT - BLACKDECAL, TUNNEL - FRONT - LEFT - BLACK
-
362621-452 DECAL, TUNNEL - CENTER - RIGHT - BLACKDECAL, TUNNEL - CENTER - RIGHT - BLACK
-
362621-453 DECAL, TUNNEL - CENTER - LEFT - BLACKDECAL, TUNNEL - CENTER - LEFT - BLACK
-
372621-450 DECAL, TUNNEL - REAR - RIGHT - BLACKDECAL, TUNNEL - REAR - RIGHT - BLACK
-
372621-451 DECAL, TUNNEL - REAR - LEFT - BLACKDECAL, TUNNEL - REAR - LEFT - BLACK
-
382621-442 DECAL, TUNNEL - RIGHT - BLACKDECAL, TUNNEL - RIGHT - BLACK
-
390621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
400730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
418470-510 SCREW, MACHINESCREW, MACHINE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
472707-584 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
486606-870 FLARE, TUNNEL - RIGHT - BLACKFLARE, TUNNEL - RIGHT - BLACK
-
486606-871 FLARE, TUNNEL - LEFT - BLACKFLARE, TUNNEL - LEFT - BLACK
-
498060-710 RIVETRIVET
-
508427-602 NUT, LOCKNUT, LOCK
-
518476-620 SCREW, MACHINESCREW, MACHINE
-
526606-600 SADDLEBAGSADDLEBAG
-
538060-630 RIVETRIVET
-
541623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
558060-482 RIVETRIVET
